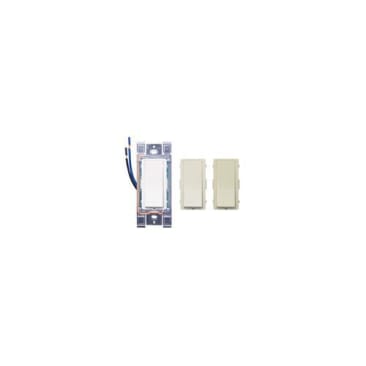

WIRELESS RECIEVER SW ADVANCED W/NEUTRAL LEVITON WSS10-UZ
Notice something off about this product?
Product Details
Attributes
Features
Resources
LevNet RF™ RF Wire-In Receiver Switch, 1-Pole Advanced Neutral Wireless, 315 MHz, 120/208/220/230/240/277 VAC Control Voltage Rating, 2/10/20/30 min Switching Time, 0 to 40 deg C Operating, 2.69 in H x 1.66 in W x 1.34 in D
LevNet RF™, Wireless, Push On/Off, Wire-in Receiver Switch, Vizia style, 10A Relay, Advanced pairing with all transmitters, Dip switches for Auto ON/Auto OFF, Manual ON/Auto OFF, Walk-through mode, Time delay (2/10/20/30 m), Range=50 to 150 ft, Radio Frequency 315 MHz, EnOcean protocol, 120/208/220/230/240/277 VAC, 50/60 Hz, 1-pole, With Neutral, NAFTA, Color: White, Ivory, Light Almond, 315 MHz, EnOcean, Title 24 compliant, ASHRAE 90.1 compliant.The Leviton line of LevNet RF™ Wall Switch Receivers work in conjunction with EnOcean-enabled Self-Powered Wireless Lighting Control Products to provide an optimal solution for retrofit lighting needs. These wireless products combine Leviton-Foots switching technology with self-powered and wireless technologies, developed and licensed from EnOcean. The Wall Switch Receiver can be installed in place of traditional single-pole wall switches and fits in a standard single gang wall box. No additional wiring is required.
- No new wiring required the RF wall switch receiver simply replaces the existing light switch and then communicates with self-powered switches and sensors via radio frequency
- Manual ON/OFF switching provides pushbutton manual-ON/OFF light switching of each light load at any time
- Maximize energy savings when paired with RF PIR occupancy sensor, RF wall switch contains all sensor settings
- Manual ON/Auto ON, Auto ON/OFF, walk through timer, auto time out selections of 2 min for testing, 10, 20 or 30 min
- Allows flexibility and customized adjustments to maximize energy savings
- Presentation/viewing mode turn lights OFF and keep them OFF while room is occupied (i.e for slide or film presentations) automatically returns to normal when manually switched back ON or room becomes vacant and time delay expires
- Walk-Thru maximizes energy savings by assuring a 2.5 min time out if motion is not present after 2 min in auto on mode
- Standard size for seamless installation RF wall switch receiver fits in a standard single gang wall box
- True zero-cross relay switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts
- All digital circuitry uses minimum components for maximum reliability and low cost
- Energy savings and efficiency lowest power consumption of any RF device less than 1/2 W per 120 VAC device and less than 3/4 W per 277 VAC device annually approximately 70% savings over other RF devices
- Air gap switch assures A/C power disconnects for safety
- 10A load rating for commercial lighting circuits
- EnOcean technology enabled for RF communication from self-powered lighting controls advanced version is compatible with other EnOcean enabled transmitter switches and occupancy sensors
- High in rush stability arching design for use with all commercial ballasts
- Retrofit energy saving bi-level lighting with occupancy sensor control replace two light switches with RF wall switch receivers, pair both with self-powered RF PIR sensor, set the first RF wall switch as auto on and the second as auto OFF
- No new wires required, product utilizes existing A/C and load wiring RF wall switch receiver, fits in a standard single gang wall box
Product Details
LevNet RF™ RF Wire-In Receiver Switch, 1-Pole Advanced Neutral Wireless, 315 MHz, 120/208/220/230/240/277 VAC Control Voltage Rating, 2/10/20/30 min Switching Time, 0 to 40 deg C Operating, 2.69 in H x 1.66 in W x 1.34 in D
LevNet RF™, Wireless, Push On/Off, Wire-in Receiver Switch, Vizia style, 10A Relay, Advanced pairing with all transmitters, Dip switches for Auto ON/Auto OFF, Manual ON/Auto OFF, Walk-through mode, Time delay (2/10/20/30 m), Range=50 to 150 ft, Radio Frequency 315 MHz, EnOcean protocol, 120/208/220/230/240/277 VAC, 50/60 Hz, 1-pole, With Neutral, NAFTA, Color: White, Ivory, Light Almond, 315 MHz, EnOcean, Title 24 compliant, ASHRAE 90.1 compliant.The Leviton line of LevNet RF™ Wall Switch Receivers work in conjunction with EnOcean-enabled Self-Powered Wireless Lighting Control Products to provide an optimal solution for retrofit lighting needs. These wireless products combine Leviton-Foots switching technology with self-powered and wireless technologies, developed and licensed from EnOcean. The Wall Switch Receiver can be installed in place of traditional single-pole wall switches and fits in a standard single gang wall box. No additional wiring is required.
Attributes
Features
- No new wiring required the RF wall switch receiver simply replaces the existing light switch and then communicates with self-powered switches and sensors via radio frequency
- Manual ON/OFF switching provides pushbutton manual-ON/OFF light switching of each light load at any time
- Maximize energy savings when paired with RF PIR occupancy sensor, RF wall switch contains all sensor settings
- Manual ON/Auto ON, Auto ON/OFF, walk through timer, auto time out selections of 2 min for testing, 10, 20 or 30 min
- Allows flexibility and customized adjustments to maximize energy savings
- Presentation/viewing mode turn lights OFF and keep them OFF while room is occupied (i.e for slide or film presentations) automatically returns to normal when manually switched back ON or room becomes vacant and time delay expires
- Walk-Thru maximizes energy savings by assuring a 2.5 min time out if motion is not present after 2 min in auto on mode
- Standard size for seamless installation RF wall switch receiver fits in a standard single gang wall box
- True zero-cross relay switches at the zero crossing point of the AC power curve to ensure maximum contactor life and compatibility with electronic ballasts
- All digital circuitry uses minimum components for maximum reliability and low cost
- Energy savings and efficiency lowest power consumption of any RF device less than 1/2 W per 120 VAC device and less than 3/4 W per 277 VAC device annually approximately 70% savings over other RF devices
- Air gap switch assures A/C power disconnects for safety
- 10A load rating for commercial lighting circuits
- EnOcean technology enabled for RF communication from self-powered lighting controls advanced version is compatible with other EnOcean enabled transmitter switches and occupancy sensors
- High in rush stability arching design for use with all commercial ballasts
- Retrofit energy saving bi-level lighting with occupancy sensor control replace two light switches with RF wall switch receivers, pair both with self-powered RF PIR sensor, set the first RF wall switch as auto on and the second as auto OFF
- No new wires required, product utilizes existing A/C and load wiring RF wall switch receiver, fits in a standard single gang wall box
