3M™, 5400771217, Shield Bond Connector, Copper Wire, Specifications: 0.8 in OD

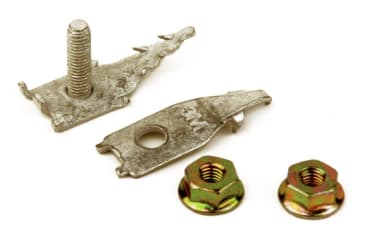

3M™ Scotchlok™ Shield Bond Connector 4460-D provides a stable and low-resistant electrical connection between communication cables with a diameter of up to 0.8 in and a conductor that includes a strap, wire and braid. 3M™ Scotchlok™ Shield Bond Connector 4460-D is compatible with fiber dome terminal closures FDTC 08M, FDTC 08S direct splice drop termination and SLiC™ terminals, as well as 533 and 733 closures. This connector is suitable for up to 100-pair cables.
- Offers a stable, low-resistant electrical connection between the shield of a communications cable and a conductor
- Features a flanged nut
- Ideal for aerial strand-mount applications
- Compatible with LL closures, SLiC™ 530 terminal closures, 2178 closures, FDC, SLiC terminals, FDTC and all copper closures, as well as SLiC 533 and 733 closures
- Suitable for up to 100-pair copper cables
- Compatible with: spiral end seal SLiC™ terminals, SLiC™ 533 & 733 closures, fiber dome terminal closures (FDTC), 2178 closures, all copper closures, LL closures, fiber dome closures (FDC), SLiC™ 530 terminal closures
- Not encapsulated
- Not flame retardant
- FTTH/FTTB/CATV, xDSL access network, backhaul wireless network, outdoor long-haul/metro loop network
- No protective shoe
Product Details
3M™, 5400771217, Shield Bond Connector, Copper Wire, Specifications: 0.8 in OD
3M™ Scotchlok™ Shield Bond Connector 4460-D provides a stable and low-resistant electrical connection between communication cables with a diameter of up to 0.8 in and a conductor that includes a strap, wire and braid. 3M™ Scotchlok™ Shield Bond Connector 4460-D is compatible with fiber dome terminal closures FDTC 08M, FDTC 08S direct splice drop termination and SLiC™ terminals, as well as 533 and 733 closures. This connector is suitable for up to 100-pair cables.
Attributes
Features
- Offers a stable, low-resistant electrical connection between the shield of a communications cable and a conductor
- Features a flanged nut
- Ideal for aerial strand-mount applications
- Compatible with LL closures, SLiC™ 530 terminal closures, 2178 closures, FDC, SLiC terminals, FDTC and all copper closures, as well as SLiC 533 and 733 closures
- Suitable for up to 100-pair copper cables
- Compatible with: spiral end seal SLiC™ terminals, SLiC™ 533 & 733 closures, fiber dome terminal closures (FDTC), 2178 closures, all copper closures, LL closures, fiber dome closures (FDC), SLiC™ 530 terminal closures
- Not encapsulated
- Not flame retardant
- FTTH/FTTB/CATV, xDSL access network, backhaul wireless network, outdoor long-haul/metro loop network
- No protective shoe
