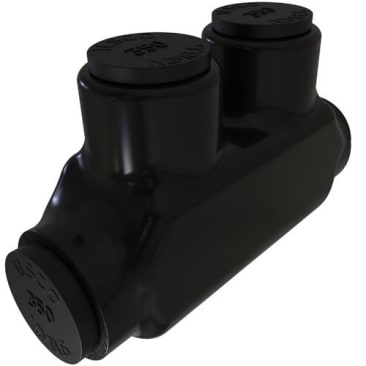

ILSCO PBT-350 350-6 2-PORT TIN PLATED NIMBUS INSULATED ALUMINUM IN-LINE SPLICER-REDUCER CONNECTOR CONDUCTOR
MFR Part #: PBT-350
SKU #: 1267238
Brand: ILSCO®
UPC: 783669077049
ILSCO® NIMBUS® PBT-350 Type PBT 2-Port 2-Wire Dual Rated Insulated Splicer/Reducer Connector, Aluminum/Copper Conductor, Aluminum
CSA File No. LR-29601 | UL 486A/486B | UL 453G | UL File No. E6207 | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Notice something off about this product?
Product Details
Attributes
Features
Resources
ILSCO® NIMBUS® Splicer/Reducer Connector, Type PBT 2-Port 2-Wire Dual Rated Insulated, Aluminum/Copper Conductor, 600 VAC, 6 AWG to 350 kcmil Wire, 5/16 in Hex, 350 A, -45 to 90 deg C, Aluminum, 4.75 in L x 1.31 in W x 2.43 in H
Conductor Type:Aluminum/Copper
Country Of Origin:Mexico
Dimensions:4.75 in L x 1.31 in W x 2.43 in H
Material:Aluminum
Specifications:6 AWG to 350 kcmil Wire, 5/16 in Hex, 350 A
Temperature Rating:-45 to 90 deg C
Type:Type PBT 2-Port 2-Wire Dual Rated Insulated
Voltage Rating:600 VAC
- Broad wire range 14 AWG to 750 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX® oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Ensures reliability
- Flexibility in the field
- Patented screw design
- Entry port closure
- Prevents oxides from forming
Product Details
ILSCO® NIMBUS® Splicer/Reducer Connector, Type PBT 2-Port 2-Wire Dual Rated Insulated, Aluminum/Copper Conductor, 600 VAC, 6 AWG to 350 kcmil Wire, 5/16 in Hex, 350 A, -45 to 90 deg C, Aluminum, 4.75 in L x 1.31 in W x 2.43 in H
Attributes
Conductor Type: Aluminum/Copper
Country Of Origin: Mexico
Dimensions: 4.75 in L x 1.31 in W x 2.43 in H
Material: Aluminum
Specifications: 6 AWG to 350 kcmil Wire, 5/16 in Hex, 350 A
Temperature Rating: -45 to 90 deg C
Type: Type PBT 2-Port 2-Wire Dual Rated Insulated
Voltage Rating: 600 VAC
Features
- Broad wire range 14 AWG to 750 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX® oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Ensures reliability
- Flexibility in the field
- Patented screw design
- Entry port closure
- Prevents oxides from forming
