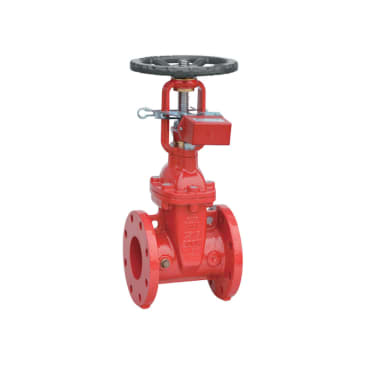

MAS W10-A-RS-FF-B-HW-B-8 Image 1

MAS 079-10542 8 FLG DI OSY GATE VLV W10-A-RS-FF-B-HW-B

MFR Part #: W10-A-RS-FF-B-HW-B-8
SKU #: 1202937
Brand: MAS™
UPC: 779680701308
MAS™ W Series W10-A-RS-FF-B-HW-B-8 Gate Valve, 8 in, Flanged, Ductile Iron, 300 psi
3 Year Limited
For mechanical, industrial, waterworks and fire protection valve products
ASME B16.1 Specified | AWWA C515 Standard | FM Approved | NSF/ANSI 61, 372 Certified | UL Listed

Notice something off about this product?

MAS™ Gate Valve, W Series, 8 in Nominal, Flanged Connection, 300 psi, 292 mm Inlet to Outlet Length, 975 mm Top to Inlet Center, Ductile Iron Body, EPDM Seat, Bronze Stem, Ductile Iron/EPDM Disc, Ductile Iron Handle, Hand Wheel Operator, 0 to 100 deg C, Material Standard: ASTM A536 65-45-12, ASTM B150, Lead-Free, Finish: Epoxy-Coated

Product Details

MAS™ Gate Valve, W Series, 8 in Nominal, Flanged Connection, 300 psi, 292 mm Inlet to Outlet Length, 975 mm Top to Inlet Center, Ductile Iron Body, EPDM Seat, Bronze Stem, Ductile Iron/EPDM Disc, Ductile Iron Handle, Hand Wheel Operator, 0 to 100 deg C, Material Standard: ASTM A536 65-45-12, ASTM B150, Lead-Free, Finish: Epoxy-Coated

Attributes

Body Material: Ductile Iron
Connection Type: Flanged
Nominal Size: 8 in
Pressure Rating: 300 psi
Disc Material: Ductile Iron/EPDM
Finish: Epoxy-Coated
Handle Material: Ductile Iron
Inlet to Outlet Length: 292 mm
Lead-Free/Contains Lead: Lead-Free
Material Standard: ASTM A536 65-45-12, ASTM B150
Operator Type: Hand Wheel
Seat Material: EPDM
Series: W Series
Stem Material: Bronze
Temperature Rating: 0 to 100 deg C
Top to Inlet Center: 975 mm

Features

  • Grooved stem for supervisory switch
  • Flanged resilient outside screw and yoke
