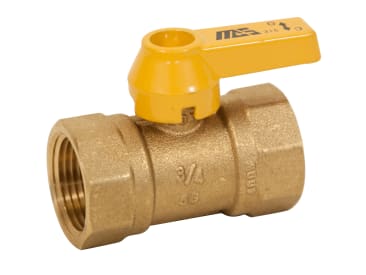

MAS 040-42560 3/4 IP CGA -40C GAS COCK LVR TYPE 315LH
MFR Part #:Â U309339
SKU #:Â 1011314
Brand: MAS™
UPC:Â 779680005062
Gas Ball Valve, 3/4 in, NPT, Brass, 400 WOG
For natural gas, manufactured gas and liquefied petroleum gases (distributed as vapor with or without the admixture of air) or mixtures thereof applications
Notice something off about this product?
Product Details
Attributes
Resources
Gas Ball Valve, 3/4 in Nominal Pipe, NPT Connection, Reduced Port, 400 WOG, Quarter-Turn Actuator, Lever Handle, 2.303 in Inlet to Outlet Length, 1.386 in Top to Inlet Center, Brass Body, Buna-N Seat, Brass Stem, Aluminum Handle, -40 to 125 deg F, Finish: Chrome-Plated, 0.55 in ID
Connection Type:NPT
Nominal Pipe Size:3/4 in
Pressure Rating:400 WOG
Actuator Type:Quarter-Turn
Body Material:Brass
Dimensions:0.55 in ID
Finish:Chrome-Plated
Handle Material:Aluminum
Handle Type:Lever
Inlet to Outlet Length:2.303 in
Port Type:Reduced
Seat Material:Buna-N
Stem Material:Brass
Temperature Rating:-40 to 125 deg F
Top to Inlet Center:1.386 in
Product Details
Gas Ball Valve, 3/4 in Nominal Pipe, NPT Connection, Reduced Port, 400 WOG, Quarter-Turn Actuator, Lever Handle, 2.303 in Inlet to Outlet Length, 1.386 in Top to Inlet Center, Brass Body, Buna-N Seat, Brass Stem, Aluminum Handle, -40 to 125 deg F, Finish: Chrome-Plated, 0.55 in ID
Attributes
Connection Type:Â NPT
Nominal Pipe Size:Â 3/4 in
Pressure Rating:Â 400 WOG
Actuator Type:Â Quarter-Turn
Body Material:Â Brass
Dimensions:Â 0.55 in ID
Finish:Â Chrome-Plated
Handle Material:Â Aluminum
Handle Type:Â Lever
Inlet to Outlet Length:Â 2.303 in
Port Type:Â Reduced
Seat Material:Â Buna-N
Stem Material:Â Brass
Temperature Rating:Â -40 to 125 deg F
Top to Inlet Center:Â 1.386 in
