WATTS 0163784 1 T&P RELIEF 125PSI 40XL-7

WATTS® Temperature and Pressure Relief Valve, 40L Series, 1 in Nominal, MNPT x FNPT Connection, 75 to 150 psi, Water Media, Bronze Body, 210 deg F, 2-5/8 in W, Additional Information: 1808000 Btu/hr Pressure Steam Discharge Capacity, 180000 Btu/hr Temperature Steam Discharge Capacity

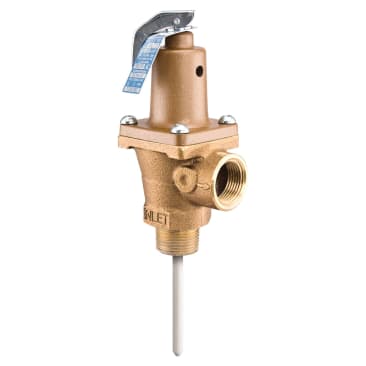

This 1 in bronze automatic reseating temperature and pressure relief valve with a 8 in thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT male inlet and NPT female outlet connections, thermo-bonded-coated thermostat, tamper-resistant bonnet screws, automatic reseating feature and test lever. The temperature relief is 210 deg (99 deg C) and the pressure relief is 125 psi.
