WATTS 0125288 Image 1

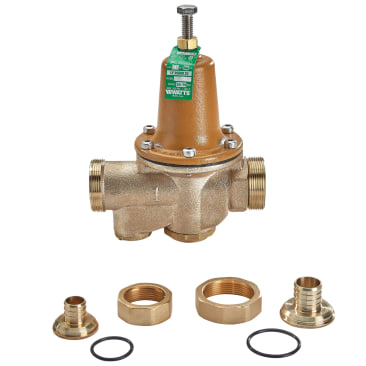

WATTS 0125288 LF25AUB-DU-PEXXPEX 1 PEX UNION 25-75PSI PRESSURE REDUCING VALVE

MFR Part #: 0125288
SKU #: 1106187
Brand: WATTS®
UPC: 098268860009
WATTS® 0125288 LF25AUB-Z3 Standard Capacity Pressure Reducing Valve, 1 in Nominal, Double Union PEX End Style, 300 psi Pressure, Copper Silicon Alloy Body
Limited
Sealed Spring Cage, Stainless Steel Adjusting and Cage Screw
Commercial and Residential
ASSE 1003 | ANSI A112.26.2 | CSA B356 | IAPMO Listed | MIL-V-18146B Type I | NSF/ANSI 61-G | UPC Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Notice something off about this product?

WATTS® Pressure Reducing Valve, Standard Capacity, Series: LF25AUB-Z3, 1 in Nominal, Double Union PEX, 300 psi, 160 deg F, Media: Water, 7-3/8 in Inlet to Outlet Length, Copper Silicon Alloy Body, Polymer Seat Trim, EPDM, 3-5/8 in D x 8 in H

This 1 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. This assembly consists of a lead free brass body, replaceable seat module, double union crimp inlet and outlet for PEX tubing, and a bypass feature to control thermal expansion pressure. The reduced pressure rating is set at 50 psi (345 kPa). The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar).

Product Details

WATTS® Pressure Reducing Valve, Standard Capacity, Series: LF25AUB-Z3, 1 in Nominal, Double Union PEX, 300 psi, 160 deg F, Media: Water, 7-3/8 in Inlet to Outlet Length, Copper Silicon Alloy Body, Polymer Seat Trim, EPDM, 3-5/8 in D x 8 in H

This 1 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. This assembly consists of a lead free brass body, replaceable seat module, double union crimp inlet and outlet for PEX tubing, and a bypass feature to control thermal expansion pressure. The reduced pressure rating is set at 50 psi (345 kPa). The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar).

Attributes

Country Of Origin: US
End Style: Double Union PEX
Nominal Size: 1 in
Pressure Range: 300 psi
Type: Standard Capacity
Body Material: Copper Silicon Alloy
Dimensions: 3-5/8 in D x 8 in H
Domestic/Import: Domestic
Inlet to Outlet Length: 7-3/8 in
Media: Water
Series: LF25AUB-Z3
Softgoods Material: EPDM
Temperature Rating: 160 deg F
Trim Material: Polymer Seat

Features

  • Lead free brass body
  • Integral stainless steel strainer removable for cleaning
  • Replaceable seat module
  • Crimp union inlet and outlet connections for PEX tubing
