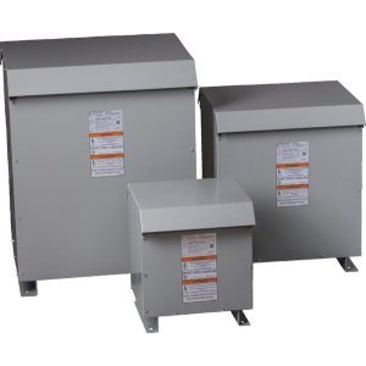

BEMAG 423-2199-000 Image 1

BEMAG 423-2199-000 30KVA 600-120Y208 3PH ALUM DIST XFMR

MFR Part #: 423-2199-000
SKU #: 1085220
Brand: BEMAG
UPC: THISISATEST
BEMAG 423-2199-000 Ventilated Isolation Transformer, 600 VAC Primary, 120Y/208 VAC Secondary, 60 Hz, 3 ph -Phase
For general loads, indoors or out, including lighting, industrial and commercial
ANSI Specified | CSA Certified | DOE 2016-431 Standard | NRCan C802 2019 Registered | UL Listed

Notice something off about this product?

BEMAG Ventilated Isolation Transformer, 30 kVA KVA Rating, 600 VAC Primary, 120Y/208 VAC Secondary, 60 Hz, 3 ph, Wall Mount, Dry Cooling, 220 deg C Insulation Temperature, NEMA 3R, Aluminum Winding Material, Powder-Coated, Gray, 150 deg C, 25 in H x 22 in W x 22 in D

Product Details

BEMAG Ventilated Isolation Transformer, 30 kVA KVA Rating, 600 VAC Primary, 120Y/208 VAC Secondary, 60 Hz, 3 ph, Wall Mount, Dry Cooling, 220 deg C Insulation Temperature, NEMA 3R, Aluminum Winding Material, Powder-Coated, Gray, 150 deg C, 25 in H x 22 in W x 22 in D

Attributes

Color: Gray
Cooling: Dry
Dimensions: 25 in H x 22 in W x 22 in D
Enclosure Type: NEMA 3R
Finish: Powder-Coated
Frequency Rating: 60 Hz
Insulation Temperature: 220 deg C
KVA Rating: 30 kVA
Mounting Type: Wall
Phase: 3 ph
Primary Voltage: 600 VAC
Secondary Voltage: 120Y/208 VAC
Temperature Rating: 150 deg C
Winding Material: Aluminum

Features

  • Compact design for easier handling and installation
  • Large connection compartment for ease of wiring and installation
  • Quiet operation for installation flexibility
  • Hassle-free front cover installation
  • Taps provided on primary to compensate for voltage variations
  • Cores of high-quality electrical steel
  • Lugs provided for units up to and including 75 kVA
