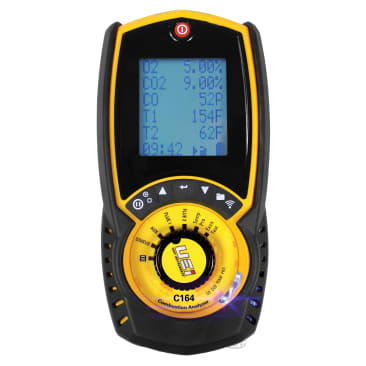

KANE C164 Image 1
KANE C164 Image 2
content loaded
KANE C164 Image 1

KANE C164 RESIDENTIAL COMBUSTIONION ANALYZER WITH NO

MFR Part #: C164
SKU #: 1279021
Brand: UEi Test Instruments™
UPC: 053533508987
Please note this item is discontinued (order fulfillment will depend on stock availability): UEi Test Instruments™ C164 Long Life Flue Gas Combustion Analyzer With Heat Exchanger Test, Pellets/Light Oil/LPG/Butane/Propane/Natural Gas/Bio Oil and Heavy Oil Fuel, 0 to 21 % Oxygen Concentration, 0 to 20 % Carbon Dioxide Concentration
1 year
This product may be subject to ecological fees.
CP2 Flue Probe, (3) AA Rechargeable Batteries, WIR00067 USB Charging Cable, 17631 Particle Filter, 11000 Tubing with Connector, AC504 Hardcase, (2) ATT29 K-Type Probe, 201991 Quick Start Guide, AC509 Carrying Case
Commercial and Residential Applications
CE Certified | EN 50379 | RoHS Compliant | TOV Protection | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Notice something off about this product?

UEi Test Instruments™ Flue Gas Combustion Analyzer, Long Life, Series: C160 Series, Pellets/Light Oil/LPG/Butane/Propane/Natural Gas/Bio Oil and Heavy Oil, 0 to 21 % Oxygen Concentration, 0 to 20 % Carbon Dioxide Concentration, 0 to 2000 ppm Carbon Monoxide Measuring Range, 32 to 113 deg F Ambient Air, 32 to 1112 deg F Stack, Large 6 Line Backlit, AA Battery

The C164, with EOS technology, eliminates the number one hassle experienced by HVAC technicians, the cost and down time of replacing the O2 sensor. The EOS award-winning technology for combustion analysis replaces the everyday electro-optical sensor with EOS CO2 technology, lowering the cost of ownership. The C164 offers direct CO2 measurement, nitric oxide measurement and features a 30 s start up time.

Product Details

UEi Test Instruments™ Flue Gas Combustion Analyzer, Long Life, Series: C160 Series, Pellets/Light Oil/LPG/Butane/Propane/Natural Gas/Bio Oil and Heavy Oil, 0 to 21 % Oxygen Concentration, 0 to 20 % Carbon Dioxide Concentration, 0 to 2000 ppm Carbon Monoxide Measuring Range, 32 to 113 deg F Ambient Air, 32 to 1112 deg F Stack, Large 6 Line Backlit, AA Battery

The C164, with EOS technology, eliminates the number one hassle experienced by HVAC technicians, the cost and down time of replacing the O2 sensor. The EOS award-winning technology for combustion analysis replaces the everyday electro-optical sensor with EOS CO2 technology, lowering the cost of ownership. The C164 offers direct CO2 measurement, nitric oxide measurement and features a 30 s start up time.

Attributes

Ambient Air Temperature Rating: 32 to 113 deg F
Battery Type: AA
Carbon Dioxide Concentration: 0 to 20 %
Carbon Monoxide Measuring Range: 0 to 2000 ppm
Country Of Origin: Great Britain
Display Type: Large 6 Line Backlit
Fuel Type: Pellets/Light Oil/LPG/Butane/Propane/Natural Gas/Bio Oil and Heavy Oil
Oxygen Concentration: 0 to 21 %
Series: C160 Series
Stack Temperature Rating: 32 to 1112 deg F
Type: Long Life

Features

  • EOS technology
  • Over-range protection pump
  • NOx filtered CO sensor
  • Heat exchanger test
  • Water trap indicator
  • High altitude compensation
  • Wireless BT module
  • Low flow detection
  • Temperature inputs, differentials and probe
  • Protective boot or overmolding
  • 8 pre-programmed fuels
  • Measures - CO, CO2, NO, flue temperature and inlet temperature
  • Calculates - O2, differential temperature, CO/CO2 ratio, efficiency (net, gross), excess air, losses and differential pressure

Resources

Instruction/Installation Manual
Owners/User Manual
Specification Sheet
