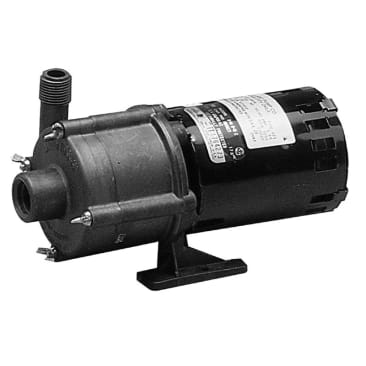

LITTLE GIANT 580603 Image 1

LITTLE GIANT 580603 2-MD-HC

MFR Part #: 580603
SKU #: 1154018
Brand: Little Giant®
UPC: 010121806030
Little Giant® 580603 In-Line Non-Submersible Magnetic Drive Pump, 8.5 gpm Flow Rate, 1/2 in FNPT Inlet x 1/2 in MNPT Outlet, 115 VAC, 200 deg F
For circulation of highly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions and other highly corrosive chemicals and solutions that are compatible with the pump's material of construction
cCSAus Certified | UL Listed

Notice something off about this product?

Little Giant® Magnetic Drive Pump, In-Line Non-Submersible, 8.5 gpm Flow Rate, 1/2 in FNPT Inlet, 1/2 in MNPT Outlet, 131 W Power, 115 VAC, 1.7 A, 60 Hz Frequency, 6.3 psi Maximum, 3100 rpm Motor, Glass-Filled Polypropylene Impeller, 200 deg F, Open Enclosure, Sleeve Bearing, Glass Filled Ryton®, 8.9 in L x 4 in W x 5 in H Dimensions

Product Details

Little Giant® Magnetic Drive Pump, In-Line Non-Submersible, 8.5 gpm Flow Rate, 1/2 in FNPT Inlet, 1/2 in MNPT Outlet, 131 W Power, 115 VAC, 1.7 A, 60 Hz Frequency, 6.3 psi Maximum, 3100 rpm Motor, Glass-Filled Polypropylene Impeller, 200 deg F, Open Enclosure, Sleeve Bearing, Glass Filled Ryton®, 8.9 in L x 4 in W x 5 in H Dimensions

Attributes

Amperage Rating: 1.7 A
Bearing Type: Sleeve
Country Of Origin: Mexico
Dimensions: 8.9 in L x 4 in W x 5 in H
Enclosure Type: Open
Flow Rate: 8.5 gpm
Frequency Rating: 60 Hz
Impeller Type: Glass-Filled Polypropylene
Inlet Size: 1/2 in FNPT
Material: Glass Filled Ryton®
Maximum Pressure: 6.3 psi
Motor Speed: 3100 rpm
Outlet Size: 1/2 in MNPT
Power Rating: 131 W
Temperature Rating: 200 deg F
Type: In-Line Non-Submersible
Voltage Rating: 115 VAC

Features

  • 1/30 hp open FC motor
  • Glass-filled polyphenylene sulfide magnet housing and volute
  • 1.1 specific gravity
  • Fluoroelastomer (FKM) O-ring
  • Ceramic thrust washers and shaft
