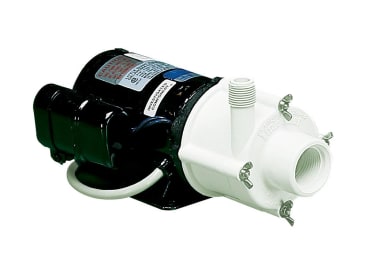

LITTLE GIANT 580513 Image 1

LITTLE GIANT 580513 2-MD-SC

MFR Part #: 580513
SKU #: 1154015
Brand: Little Giant®
UPC: 010121805132
LittleGIANT® 580513 SC Magnetic Drive Pump, 8.5 gpm Flow Rate, 230 VAC, 150 deg F
1 Year
Ideal for the Circulation of Moderately Corrosive Acids, Alkalis, Solvents, Brine, Plating Solutions, Sterile Solutions, and other Moderately Corrosive Chemicals and Solutions

Notice something off about this product?

LittleGIANT®, 580513, Magnetic Drive Pump, Series: SC, 8.5 gpm Flow Rate, 100 W Power, 230 VAC, 0.64 A, 60 Hz Frequency, 6.3 psi Maximum, Polypropylene Impeller, 150 deg F, Plastic/Thermoplastic, 5 in H x 4 in W x 8.9 in L Dimensions

Product Details

LittleGIANT®, 580513, Magnetic Drive Pump, Series: SC, 8.5 gpm Flow Rate, 100 W Power, 230 VAC, 0.64 A, 60 Hz Frequency, 6.3 psi Maximum, Polypropylene Impeller, 150 deg F, Plastic/Thermoplastic, 5 in H x 4 in W x 8.9 in L Dimensions

Attributes

Amperage Rating: .65 A, .64 A
Body Material: Polypropylene
Cord Length: 6 ft
Dimensions: 5 in H x 4 in W x 8.9 in L, 8.9 in L x 3.94 in W x 4.94 in H
Discharge Size: 1/2 in
Flow Rate: 8.5 gpm
Frequency Rating: 50/60 Hz, 60 Hz
HP Rating: 1/30 hp
Impeller Material: Polypropylene
Impeller Type: Polypropylene
Material: Plastic/Thermoplastic
Maximum Feet of Head: 14.6 ft
Maximum Pressure: 6.3 psi
Maximum Temperature: 150 deg F
Model: 2-MD-SC
Phase: 1 ph
Power Rating: 100 W, 105 W, 100 W
Series: SC
Speed Rating: 2700 to 3000 rpm
Suction Size: 1/2 in
Temperature Rating: 150 deg F
Voltage Rating: 230 VAC
Working Pressure: 6.3 psi

Features

  • 1/25 or 1/30 hp open FC motor
  • Glass-filled polypropylene magnet housing
  • Glass-filled polypropylene volute
  • 1.1 specific gravity
  • Nitrile O-ring
  • Ceramic thrust washers and shaft
