LITTLE GIANT 580509 2-MDIX-SC
MFR Part #:Â 580509
SKU #:Â 1154014
Brand: Little Giant®
UPC:Â 010121805095

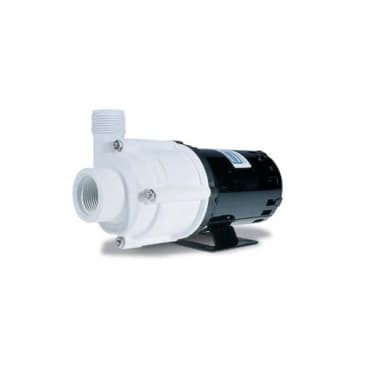

LittleGIANT® 580509 Magnetic Drive Pump, 1 in FNPT Inlet x 1 in MNPT Outlet, 115 VAC, 1 Phase, 150 deg F
CSA Certified
Notice something off about this product?
Product Details
Attributes
Resources
LittleGIANT®, 580509, Magnetic Drive Pump, 1 in FNPT Inlet, 1 in MNPT Outlet, 110 W Power, 115 VAC, 1.5 A, 60 Hz Frequency, 1 ph, 3.5 psi Maximum, Glass-Filled Polypropylene Impeller, 150 deg F
Amperage Rating:1.5 A
Body Material:Polypropylene
Cord Length:6 ft
Dimensions:9.27 in L x 3.94 in W x 5.21 in H
Discharge Size:1 in
Flow Rate:12.8 gpm
Frequency Rating:60 Hz
HP Rating:1/30 hp
Impeller Material:Polypropylene
Impeller Type:Glass-Filled Polypropylene
Inlet Size:1 in FNPT
Maximum Feet of Head:8.1 ft
Maximum Pressure:3.5 psi
Maximum Temperature:150 deg F
Model:2-MDIX-SC
Outlet Size:1 in MNPT
Phase:1 ph, 1
Power Rating:110 W
Speed Rating:3000 rpm
Suction Size:1 in
Temperature Rating:150 deg F
Voltage Rating:115 VAC
Product Details
LittleGIANT®, 580509, Magnetic Drive Pump, 1 in FNPT Inlet, 1 in MNPT Outlet, 110 W Power, 115 VAC, 1.5 A, 60 Hz Frequency, 1 ph, 3.5 psi Maximum, Glass-Filled Polypropylene Impeller, 150 deg F
Attributes
Amperage Rating:Â 1.5 A
Body Material:Â Polypropylene
Cord Length:Â 6 ft
Dimensions:Â 9.27 in L x 3.94 in W x 5.21 in H
Discharge Size:Â 1 in
Flow Rate:Â 12.8 gpm
Frequency Rating:Â 60 Hz
HP Rating:Â 1/30 hp
Impeller Material:Â Polypropylene
Impeller Type:Â Glass-Filled Polypropylene
Inlet Size:Â 1 in FNPT
Maximum Feet of Head:Â 8.1 ft
Maximum Pressure:Â 3.5 psi
Maximum Temperature:Â 150 deg F
Model:Â 2-MDIX-SC
Outlet Size:Â 1 in MNPT
Phase:Â 1 ph, 1
Power Rating:Â 110 W
Speed Rating:Â 3000 rpm
Suction Size:Â 1 in
Temperature Rating:Â 150 deg F
Voltage Rating:Â 115 VAC
