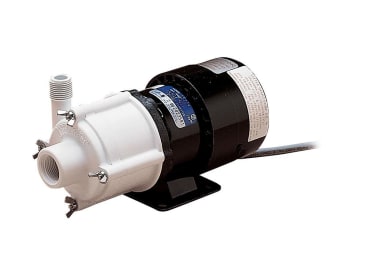

LITTLE GIANT 580503 Image 1

LITTLE GIANT 580503 PUMP 2-MD-SC

MFR Part #: 580503
SKU #: 0383012
Brand: Little Giant®
UPC: 010121805033
LittleGIANT® 580503 Magnetic Drive Pump, 8.5 gpm Flow Rate, 115 VAC, 150 deg F
1 Year
CSA Certified | UL Listed

Notice something off about this product?

LittleGIANT®, 580503, Magnetic Drive Pump, 8.5 gpm Flow Rate, 109 W Power, 115 VAC, 1.43 A, 60 Hz Frequency, 6.3 psi Maximum, Polypropylene Impeller, 150 deg F, Plastic/Thermoplastic, 4.94 in H x 3.9 in W x 8.88 in L Dimensions

Product Details

LittleGIANT®, 580503, Magnetic Drive Pump, 8.5 gpm Flow Rate, 109 W Power, 115 VAC, 1.43 A, 60 Hz Frequency, 6.3 psi Maximum, Polypropylene Impeller, 150 deg F, Plastic/Thermoplastic, 4.94 in H x 3.9 in W x 8.88 in L Dimensions

Attributes

Amperage Rating: 1.4 A, 1.43 A
Body Material: Polypropylene
Cord Length: 6 ft
Dimensions: 4.94 in H x 3.9 in W x 8.88 in L, 8.9 in L x 3.94 in W x 4.94 in H
Discharge Size: 1/2 in
Flow Rate: 8.5 gpm
Frequency Rating: 60 Hz
HP Rating: 1/25 hp
Impeller Material: Polypropylene
Impeller Type: Polypropylene
Material: Plastic/Thermoplastic
Maximum Feet of Head: 14.6 ft
Maximum Pressure: 6.3 psi
Maximum Temperature: 150 deg F
Model: 2-MD-SC
Phase: 1 ph
Power Rating: 109 W
Speed Rating: 2900 rpm
Suction Size: 1/2 in
Temperature Rating: 150 deg F
Voltage Rating: 115 VAC
Working Pressure: 6.3 psi

Features

  • 1/25 or 1/30 hp open FC motor
  • Glass-filled polypropylene magnet housing
  • Glass-filled polypropylene volute
  • 1.1 specific gravity
  • Nitrile O-ring
  • Ceramic thrust washers and shaft
