CSC CP40W-40K-WH Image 1

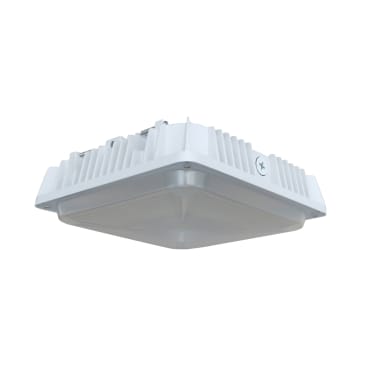

CSC CP40W-40K-WH 40W 40K WHT CANOPY LIGHT

MFR Part #: CP40W-40K-WH
SKU #: 1239338
Brand: CSC LED
UPC: 845599020387
Please note this item is discontinued (order fulfillment will depend on stock availability): CSC LED CP40W-40K-WH Canopy Light, 40 W Fixture, 120 to 277 V, Powder Coated/White Housing
5 years
Cells, Canopy parking Structures, Pool Areas, Paint Lines and Parts Inspection Applications
cUL File No. E482965 | DLC File No. PLX7P5AE5QAJ | DLC Listed

Notice something off about this product?

CSC LED Canopy Light, Series: CP Series, 120 to 277 V, 40 W Fixture, 114 Lumens/W Light Output, 50000 hr Average Life, 4000 K Color Temperature, 80 CRI, Polycarbonate Lens, 4464 Lumens, IP65 Enclosure, Aluminum Alloy Housing Material, Powder Coated/White Housing Finish, 203 mm W x 75 mm D x 203 mm H Dimensions

Product Details

CSC LED Canopy Light, Series: CP Series, 120 to 277 V, 40 W Fixture, 114 Lumens/W Light Output, 50000 hr Average Life, 4000 K Color Temperature, 80 CRI, Polycarbonate Lens, 4464 Lumens, IP65 Enclosure, Aluminum Alloy Housing Material, Powder Coated/White Housing Finish, 203 mm W x 75 mm D x 203 mm H Dimensions

Attributes

Average Life: 50000 hr
Color Rendering Index (CRI): 80
Color Temperature: 4000 K
Country Of Origin: CHINA
Dimensions: 203 mm W x 75 mm D x 203 mm H
Enclosure Type: IP65
Fixture Wattage: 40 W
Housing Finish: Powder Coated/White
Housing Material: Aluminum Alloy
Lens Type: Polycarbonate
Light Output: 114 Lumens/W
Lumens: 4464 Lumens
Series: CP Series
Voltage Rating: 120 to 277 V

Features

  • High impact-resistant and low glare
  • Built-in surge protector
  • Hinged mounting plate for quick installation
  • 1/2 in NPT conduit connection
  • Internal dimmable microwave motion sensor optional
  • Suitable for damp/wet locations or wherever a high impact-resistant fixture is required
  • 0 to 10 V dimmable driver

Resources

Catalog
Instruction/Installation Manual
Specification Sheet
