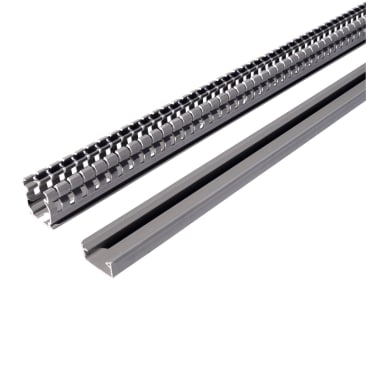

4/6 SLOT WIRING DUCT 15 X 17 ABB 05119
MFR Part #:Â 05119
SKU #:Â 1156600
Brand: ABB | Ty-Duct®
UPC:Â 888614189348
Please note this item is discontinued (order fulfillment will depend on stock availability): Ty-Duct® 05119 Finger Wiring Duct, 4 to 6 mm Narrow Slot, 15 mm W 17 mm D, Thermoplastic
05300 Cover
Industrial Applications
CSA File No. 077988 | EN 50085-2-3 | IMQ Certified | RINA Approved | UL Listed | CSA Certified | IMQ Mark EN 50085-2-3 | RINA Certified
Notice something off about this product?
Product Details
Attributes
Features
Resources
Ty-Duct®, 05119, Wiring Duct, Finger, 15 mm Width, 17 mm Depth, 2 m Length, Narrow Slot, 4 to 6 mm Slot, No Adhesive Backed, Thermoplastic, Gray
Country Of Origin:ITALY
Adhesive Backed:No
Color:Gray
Depth:17 mm
Length:2 m
Material:Thermoplastic
Slot Size:4 to 6 mm
Slot Type:Narrow
Type:Finger
Width:15 mm
- No burr, rounded-off inner edges
- Cover can be opened without having to use a special tool
- Smaller, higher number of fingers for more concise harnessing
- Can be mounted on horizontal or vertical surfaces even when the cover is on the bottom
- Trunking compliant with the new European standard EN 50085-2-3
- Lead-free
- Plastic, insulating, shock-proof, self-extinguishing material in compliance with UL 94-V0 standard and resistant to abnormal heat and fire up to 960 deg C (glow wire test) in compliance with IEC 695-2-1 standard
- The ribs are cut using a special pressing process (rounding of the edges) producing wiring ducts completely free of burr and rough edges
- 5 deg C minimum storage/transport temperature
- Finger design restricts wire from slipping along the edge - creates two or three
- Minimum installation and usage temperature: -15 deg C
- Resistant to acids, oils, and greases
- Color RAL 7030 gray
- Double trimming line, one at the base of the ribs so that they can be removed by bending them outwards and one at the base of the lateral sides so that the edge can be cut when two wiring ducts are branched
- Cable holder moldings half-way up the straight section of the ribs in 80 and 100 mm high wiring ducts
- Controlled splaying of sides to ensure a perfect seal of the cover in the vertical sections and at high temperatures
- Designed to snap onto the fix-o-rapid special accessory, suitable to be fastened both to din rail and base plate
- The dimensions and resilience of the ribs ensure repeated splaying during cabling
- New rib profile makes it easy to open and close the cover and guarantees that it clips on more safely
Product Details
Ty-Duct®, 05119, Wiring Duct, Finger, 15 mm Width, 17 mm Depth, 2 m Length, Narrow Slot, 4 to 6 mm Slot, No Adhesive Backed, Thermoplastic, Gray
Attributes
Country Of Origin:Â ITALY
Adhesive Backed:Â No
Color:Â Gray
Depth:Â 17 mm
Length:Â 2 m
Material:Â Thermoplastic
Slot Size:Â 4 to 6 mm
Slot Type:Â Narrow
Type:Â Finger
Width:Â 15 mm
Features
- No burr, rounded-off inner edges
- Cover can be opened without having to use a special tool
- Smaller, higher number of fingers for more concise harnessing
- Can be mounted on horizontal or vertical surfaces even when the cover is on the bottom
- Trunking compliant with the new European standard EN 50085-2-3
- Lead-free
- Plastic, insulating, shock-proof, self-extinguishing material in compliance with UL 94-V0 standard and resistant to abnormal heat and fire up to 960 deg C (glow wire test) in compliance with IEC 695-2-1 standard
- The ribs are cut using a special pressing process (rounding of the edges) producing wiring ducts completely free of burr and rough edges
- 5 deg C minimum storage/transport temperature
- Finger design restricts wire from slipping along the edge - creates two or three
- Minimum installation and usage temperature: -15 deg C
- Resistant to acids, oils, and greases
- Color RAL 7030 gray
- Double trimming line, one at the base of the ribs so that they can be removed by bending them outwards and one at the base of the lateral sides so that the edge can be cut when two wiring ducts are branched
- Cable holder moldings half-way up the straight section of the ribs in 80 and 100 mm high wiring ducts
- Controlled splaying of sides to ensure a perfect seal of the cover in the vertical sections and at high temperatures
- Designed to snap onto the fix-o-rapid special accessory, suitable to be fastened both to din rail and base plate
- The dimensions and resilience of the ribs ensure repeated splaying during cabling
- New rib profile makes it easy to open and close the cover and guarantees that it clips on more safely
