ABB EOT32U3P3-1S Image 1

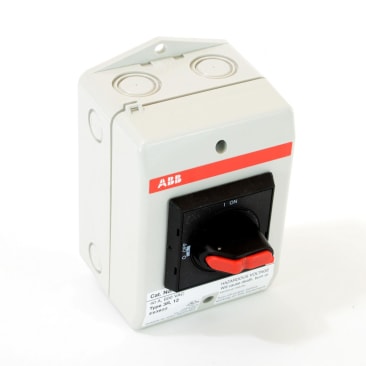

ABB EOT32U3P3-1S ENCLOSED DISCONNECT SWITCH PLASTIC

MFR Part #: EOT32U3P3-1S
SKU #: 1061449
Brand: ABB
UPC: 662019444901
ABB SafeLine EOT32U3P3-1S Heavy Duty Non-Fused Enclosed Disconnect Switch, 600 VAC, 40 A, 20 hp, 25 hp, 1NO Contact Form, 3 Poles
For outdoor use primarily to provide a degree of protection against rain, sleet and damage from external ice formation, circulating dust, falling dirt and dripping non-corrosive liquids and industrial applications
UL 508 | CSA C22.2 No. 14

Notice something off about this product?

ABB SafeLine Enclosed Disconnect Switch, Heavy Duty Non-Fused, 600 VAC, 40 A, 20 hp, 25 hp, 3 Pole, 1NO Contact Form, Black Selector Handle Actuator, NEMA 3R/12 Enclosure, Lug Terminal, 6.35 in H x 3.94 in W x 3.19 in D Dimensions, Plastic

SafeLine enclosed disconnect switches are designed to meet customer requirements in terms of safety, ease of installation, space savings and operational convenience. They are available in a wide range of ampere ratings, are CSA certified and EEMAC rated to satisfy rugged industrial environments.

Product Details

ABB SafeLine Enclosed Disconnect Switch, Heavy Duty Non-Fused, 600 VAC, 40 A, 20 hp, 25 hp, 3 Pole, 1NO Contact Form, Black Selector Handle Actuator, NEMA 3R/12 Enclosure, Lug Terminal, 6.35 in H x 3.94 in W x 3.19 in D Dimensions, Plastic

SafeLine enclosed disconnect switches are designed to meet customer requirements in terms of safety, ease of installation, space savings and operational convenience. They are available in a wide range of ampere ratings, are CSA certified and EEMAC rated to satisfy rugged industrial environments.

Attributes

Amperage Rating: 40 A
Country Of Origin: US
Enclosure Type: NEMA 3R/12
Actuator Type: Black Selector Handle
Contact Form: 1NO
Dimensions: 6.35 in H x 3.94 in W x 3.19 in D
Horsepower: 20 hp, 25 hp
Material: Plastic
Number of Poles: 3
Terminal Type: Lug
Type: Heavy Duty Non-Fused
Voltage Rating: 600 VAC

Features

  • Modern appearance
  • Quick make, quick brake mechanism
  • Extremely compact® size
  • Fingerproof construction
  • No hazardous exposed parts
  • 20 hp at 480 VAC, 25 hp at 600 VAC
