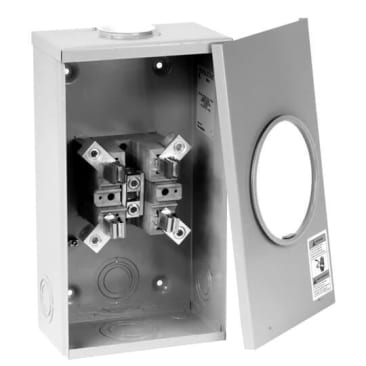

MICRO BQ2-TCV COMBO 200 AMP METER SOCKET

MFR Part #: BQ2-TCV
SKU #: 0710729
Brand: ABB | Microlectric®
UPC: 624871002125
Microlectric® BQ2-TCV Standard Weatherproof Meter Socket With Screw Type Ring, 600 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Overhead and Underground Service Applications
CSA File No. 27716

Notice something off about this product?

Microlectric® Meter Socket, Standard Weatherproof, Series: BQ2, 600 VAC, 200 A, 1 Phase, Overhead/Underground Feed, 4 Jaws, 6 AWG to 250 kcmil Wire, Line/Load Terminal, NEMA 3R, 15-5/8 in H x 8-47/64 in W x 5-13/32 in D

Product Details

Microlectric® Meter Socket, Standard Weatherproof, Series: BQ2, 600 VAC, 200 A, 1 Phase, Overhead/Underground Feed, 4 Jaws, 6 AWG to 250 kcmil Wire, Line/Load Terminal, NEMA 3R, 15-5/8 in H x 8-47/64 in W x 5-13/32 in D

Attributes

Amperage Rating: 200 A
Country Of Origin: Canada
Connection Type: Tunnel
Dimensions: 15-5/8 in H x 8-47/64 in W x 5-13/32 in D
Enclosure Type: NEMA 3R
Feed Type: Overhead/Underground, Overhead, Underground
NEMA Rating: NEMA 3R
Number of Jaws: 4
Phase: 1 ph, 1
Series: BQ2, BQ2 Series
Terminal Type: Line/Load, Line, Load
Type: Standard Weatherproof
Voltage Rating: 600 VAC, 600 V
Wire Material: Aluminum/Copper
Wire Size: 6 AWG to 250 kcmil

Features

  • Made or Assembled in Canada
  • Aluminum tunnel type connectors for both line and load sides

Resources

Specification Sheet
