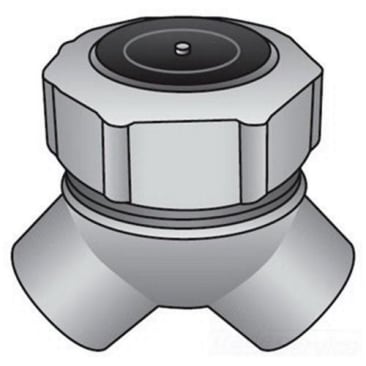

3/4 CAPPED ELBOW O-Z/GEDNEY LBY-75

MFR Part #: LBY-75
SKU #: 0673170
Brand: O-Z Gedney
UPC: 783126329018
O-Z/Gedney LBY-75 Type LBY Explosionproof Short Capped Conduit Elbow, 3/4 in Trade, 90 deg, Malleable Iron, Electro-Plated Zinc
Limited
Hazardous Location Applications
ARRA Compliant | UL 34997 | UL 886 | UL 514B | Hazardous Location: Class I Div 1, 2 Group B, C, D | Class I Zone 1, 2 Group IIA, IIB + H2 | Class II Div 1, 2 Group E, F, G | Class III | CSA C22.2 No. 30 File No. 009795 | NEC Articles No. 500-503/505 | Military Specification Mil-F-28675

Notice something off about this product?

O-Z/Gedney Conduit Elbow, Type LBY Explosionproof Short Capped, 3/4 in Trade, 90 deg Angle, For Use With: Threaded IMC/Rigid Conduit, Malleable Iron, Electro-Plated Zinc, 2-3/8 in L x 2-1/2 in H Dimensions

Product Details

O-Z/Gedney Conduit Elbow, Type LBY Explosionproof Short Capped, 3/4 in Trade, 90 deg Angle, For Use With: Threaded IMC/Rigid Conduit, Malleable Iron, Electro-Plated Zinc, 2-3/8 in L x 2-1/2 in H Dimensions

Attributes

Angle: 90 deg
Suitable For Use With: Threaded IMC/Rigid Conduit
Trade Size: 3/4 in
Dimensions: 2-3/8 in L x 2-1/2 in H
Finish: Electro-Plated Zinc
Material: Malleable Iron
Type: Type LBY Explosionproof Short Capped

Features

  • Provides a 90 deg change in direction in hazardous and ordinary locations where accessibility is needed for pulling conductors
  • Screw-on cover for ease of installation and removal
  • Cover opens on an angle permitting conductors to be pulled straight through either hub
  • Can make 90 deg turns in conduit where a compact turn is desired
  • Female tapered threaded hubs (NPT) for rigid conduit and IMC
