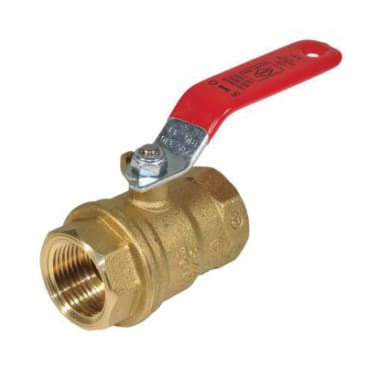

RED-WHITE 5044A-2 Image 2

RED-WHITE 004-02149 2 IP 600WOG BV 5044A

MFR Part #: 5044A-2
SKU #: 0547105
Brand: RED-WHITE TOYO
UPC: 620689544093
RED-WHITE TOYO 5044A-2 Ball Valve, 2 in, FIP, Brass, 600 psi
ANSI B1.20.1 | MSS SP-110

Notice something off about this product?

RED-WHITE TOYO Ball Valve, 2 in Nominal, FIP Connection, Full Port, 600 psi, 4.33 in Inlet to Outlet Length, 2.83 in Top to Inlet Center, 1 Handles, Lever Handle Operator, Brass Body, PTFE Seat, Brass Stem, FKM Seal, Carbon Steel Handle, Brass Ball, Additional Information: 4.44 lb Weight, C37700 Brass Body Cap, PBT Thrust Washer

Product Details

RED-WHITE TOYO Ball Valve, 2 in Nominal, FIP Connection, Full Port, 600 psi, 4.33 in Inlet to Outlet Length, 2.83 in Top to Inlet Center, 1 Handles, Lever Handle Operator, Brass Body, PTFE Seat, Brass Stem, FKM Seal, Carbon Steel Handle, Brass Ball, Additional Information: 4.44 lb Weight, C37700 Brass Body Cap, PBT Thrust Washer

Attributes

Additional Information: 4.44 lb Weight, C37700 Brass Body Cap, PBT Thrust Washer
Ball Material: Brass
Body Material: Brass, C37700 Brass
Connection Type: FIP
Handle Material: Carbon Steel
Inlet to Outlet Length: 4.33 in
Nominal Size: 2 in
Number of Handles: 1
Operator Type: Lever Handle
Port Type: Full
Pressure Rating: 600 psi
Seal Material: FKM
Seat Material: PTFE
Stem Material: Brass
Top to Inlet Center: 2.83 in

Features

  • Two-piece body
  • Blowout proof stem
  • Chrome-plated/vented ball
  • Full port
