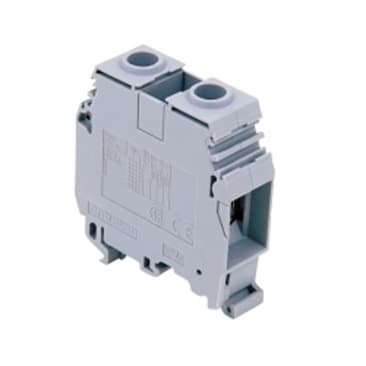

M35-16 TERMINAL BLOCK 10-0AWG ABB 011512407
MFR Part #:Â 011512407
SKU #:Â 1062224
Brand:Â ABB
UPC:Â 662019022680
ABB 011512407 SNA Enclosed Terminal Block, 1000 VAC, 125 A, 10 AWG Wire, DIN Rail Mount
For energy, explosive atmospheres, maritime, material handling and traction industries, control panels and standard distribution applications
RoHS Compliant | CE Certified | CSA Certified | cUL Listed | EAC Certified | UL94 V-0 Flammability Rating
Notice something off about this product?
Product Details
Attributes
Features
Resources
ABB Terminal Block, Enclosed, Series: SNA, 1000 VAC, 125 A, 10 AWG Wire, 17 mm Wire Strip Length, Feed-Through Terminal, M35/16 Terminal, 16 mm Spacing, 2.8 to 3 N-m, DIN Rail Mount, Screw Clamp, -55 to 110 deg C, Polyamide, Gray, 1.93 in L x 0.63 in W x 2.32 in H
Amperage Rating:125 A
Color:Gray
Connection Type:Screw Clamp
Dimensions:1.93 in L x 0.63 in W x 2.32 in H
Material:Polyamide
Mounting Type:DIN Rail
Series:SNA
Spacing:16 mm
Temperature Rating:-55 to 110 deg C
Terminal Size:M35/16
Terminal Type:Feed-Through
Torque Rating:2.8 to 3 N-m
Type:Enclosed
Voltage Rating:1000 VAC
Wire Size:10 AWG
Wire Strip Length:17 mm
- Self-locking clamp design prevents screw loosening
- Funneled side entry for up to two ferruled or non - ferruled solid or stranded wires
- High quality steel offers a very high over - torque resistance
- 600 VAC main circuit voltage
- Clamp is protected from harsh environments by a zinc bichromate surface treatment
- Use with applications ranging from standard distribution and control panels
- Compensates for the flattening of copper under contact pressure
- Mounting on DIN rail G32 (32 x 15 mm mounting rail) according to IEC 60715 - TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715 - TH35-15 (35 x 15 mm mounting rail) according to IEC 60715
Product Details
ABB Terminal Block, Enclosed, Series: SNA, 1000 VAC, 125 A, 10 AWG Wire, 17 mm Wire Strip Length, Feed-Through Terminal, M35/16 Terminal, 16 mm Spacing, 2.8 to 3 N-m, DIN Rail Mount, Screw Clamp, -55 to 110 deg C, Polyamide, Gray, 1.93 in L x 0.63 in W x 2.32 in H
Attributes
Amperage Rating:Â 125 A
Color:Â Gray
Connection Type:Â Screw Clamp
Dimensions:Â 1.93 in L x 0.63 in W x 2.32 in H
Material:Â Polyamide
Mounting Type:Â DIN Rail
Series:Â SNA
Spacing:Â 16 mm
Temperature Rating:Â -55 to 110 deg C
Terminal Size:Â M35/16
Terminal Type:Â Feed-Through
Torque Rating:Â 2.8 to 3 N-m
Type:Â Enclosed
Voltage Rating:Â 1000 VAC
Wire Size:Â 10 AWG
Wire Strip Length:Â 17 mm
Features
- Self-locking clamp design prevents screw loosening
- Funneled side entry for up to two ferruled or non - ferruled solid or stranded wires
- High quality steel offers a very high over - torque resistance
- 600 VAC main circuit voltage
- Clamp is protected from harsh environments by a zinc bichromate surface treatment
- Use with applications ranging from standard distribution and control panels
- Compensates for the flattening of copper under contact pressure
- Mounting on DIN rail G32 (32 x 15 mm mounting rail) according to IEC 60715 - TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715 - TH35-15 (35 x 15 mm mounting rail) according to IEC 60715
