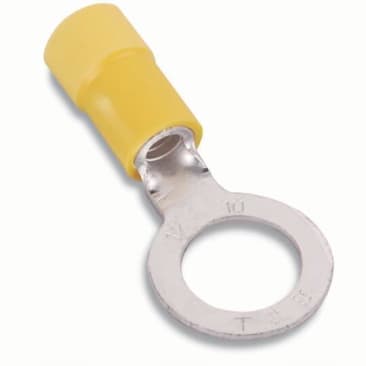

ABB 10RC-38X Image 1

ABB 10RC-38X 3/8 EXPANDED INSULATED VINYL RING TERMINAL 12-10 BLT

MFR Part #: 10RC-38X
SKU #: 1264157
Brand: ABB
UPC: 786210800516
Sta-Kon® 10RC-38X RC Series Expanded Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.29 in L, Brazed Seam Barrel, Copper, Yellow
WT145C, WT2000, WT112M, ERG4001 and ERG4003 tools
CSA Certified | UL Listed | UL 94 V-0

Notice something off about this product?

Sta-Kon® Ring Terminal, Expanded Insulated, Series: RC Series, 12 to 10 AWG Conductor, 3/8 in Stud, 1.29 in Length, Brazed Seam Barrel, Ring Tongue, 0.59 in W x 0.04 in THK Tongue, 600 VAC, 1/4 in Dia Max Insulation, 0.44 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Plated, Yellow

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Product Details

Sta-Kon® Ring Terminal, Expanded Insulated, Series: RC Series, 12 to 10 AWG Conductor, 3/8 in Stud, 1.29 in Length, Brazed Seam Barrel, Ring Tongue, 0.59 in W x 0.04 in THK Tongue, 600 VAC, 1/4 in Dia Max Insulation, 0.44 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Plated, Yellow

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Attributes

Barrel Type: Brazed Seam
Color: Yellow
Conductor Size: 12 to 10 AWG
Country Of Origin: US
Finish: Tin Plated
Length: 1.29 in
Material: Copper
Specifications: 1/4 in Dia Max Insulation, 0.44 in Clearance, Vinyl Insulation
Stud Size: 3/8 in
Temperature Rating: 105 deg C
Tongue Size: 0.59 in W x 0.04 in THK
Tongue Type: Ring
Type: Expanded Insulated
Voltage Rating: 600 VAC
Series: RC Series

Features

  • Suffix X indicate an expanded insulation grip, means a wider wire entry to accommodate heavy wall insulation, self-insulated with a PVC (vinyl) insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point
  • Brazed seam barrel that is serrated to obtain high pullout value
  • Made of copper and has electro-tin plating for corrosion resistance
  • Ring terminals won't fall free even if the mounting screw loosens
  • 50 Pieces/Pack

Resources

Specification Sheet
