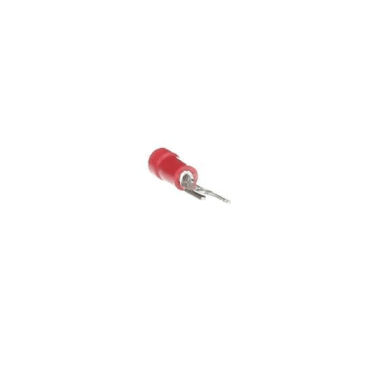

ABB 18RA-10FL INSULATED VINYL LOCKING FORK TERMINAL 22-16 BOLT NO10
MFR Part #:Â 18RA-10FL
SKU #:Â 1272254
Brand:Â ABB
UPC:Â 786210806488
Sta-Kon® 18RA-10FL RA Series Insulated Fork Terminal, 22 to 16 AWG Conductor, 0.97 in L, Brazed Seam/Serrated Barrel, Copper, Red
CSA Certified | UL 94 V-0 Flammability Rated | UL File No. E9809
Notice something off about this product?
Product Details
Attributes
Features
Resources
Sta-Kon® Fork Terminal, Insulated, Series: RA Series, 22 to 16 AWG Conductor, #10 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.29 in W x 0.02 in THK Tongue, 600 VAC, Specifications: 0.15 in Dia Maximum Insulation, 1/4 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Red
Barrel Type:Brazed Seam/Serrated
Color:Red
Conductor Size:22 to 16 AWG
Country Of Origin:US
Finish:Electroplated Tin
Length:.97 in
Material:Copper
Series:RA Series
Specifications:0.15 in Dia Maximum Insulation, 1/4 in Clearance, Vinyl Insulation
Stud Size:#10
Temperature Rating:105 deg C
Tongue Size:0.29 in W x 0.02 in THK
Tongue Type:Locking Fork
Type:Insulated
Voltage Rating:600 VAC
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Product Details
Sta-Kon® Fork Terminal, Insulated, Series: RA Series, 22 to 16 AWG Conductor, #10 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.29 in W x 0.02 in THK Tongue, 600 VAC, Specifications: 0.15 in Dia Maximum Insulation, 1/4 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Red
Attributes
Barrel Type:Â Brazed Seam/Serrated
Color:Â Red
Conductor Size:Â 22 to 16 AWG
Country Of Origin:Â US
Finish:Â Electroplated Tin
Length:Â .97 in
Material:Â Copper
Series:Â RA Series
Specifications:Â 0.15 in Dia Maximum Insulation, 1/4 in Clearance, Vinyl Insulation
Stud Size:Â #10
Temperature Rating:Â 105 deg C
Tongue Size:Â 0.29 in W x 0.02 in THK
Tongue Type:Â Locking Fork
Type:Â Insulated
Voltage Rating:Â 600 VAC
Features
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
