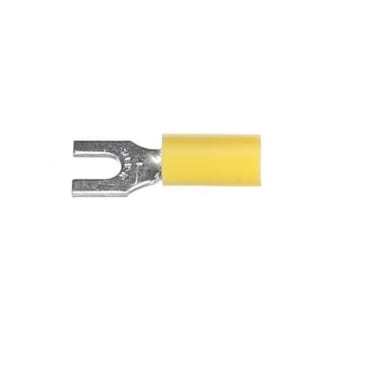

ABB 10RC-8F Image 1
ABB 10RC-8F Image 2
ABB 10RC-8F Image 3
ABB 10RC-8F Image 4
ABB 10RC-8F Image 5
content loaded
ABB 10RC-8F Image 1

ABB 10RC-8F INSULATED VINYL FORK TERMINAL 12-10 BOLT NO8 YELLOW

MFR Part #: 10RC-8F
SKU #: 1272244
Brand: ABB
UPC: 786210800394
Sta-Kon® 10RC-8F RC Series Insulated Fork Terminal, 12 to 10 AWG Conductor, 1.09 in L, Brazed Seam/Serrated Barrel, Copper, Yellow
CSA Certified | UL 94 V-0 Flammability Rated | UL File No. E9809

Notice something off about this product?

Sta-Kon® Fork Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #8 Stud, 1.09 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.38 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Yellow

Product Details

Sta-Kon® Fork Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #8 Stud, 1.09 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.38 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Yellow

Attributes

Barrel Type: Brazed Seam/Serrated
Color: Yellow
Conductor Size: 12 to 10 AWG
Country Of Origin: US
Finish: Electroplated Tin
Length: 1.09 in
Material: Copper
Series: RC Series
Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation
Stud Size: #8
Temperature Rating: 105 deg C
Tongue Size: 0.38 in W x 0.04 in THK
Tongue Type: Fork
Type: Insulated
Voltage Rating: 600 VAC

Features

  • Fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire flex point
  • Brazed seam barrel is serrated for high pull-out value
  • Insulation is Color coded
  • WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
