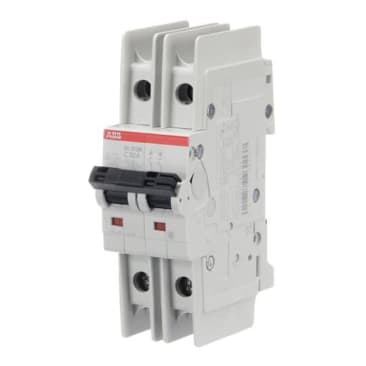

ABB SU202M-C30 MINI CRCUT BRKR 30A 2 POLE C TRIP CURVE

MFR Part #: SU202M-C30
SKU #: 1197888
Brand: ABB
UPC: 888614422490
ABB SU202M-C30 SU200M High Performance Miniature Circuit Breaker, 277/480Y VAC, 48/96 VDC, 30 A, 10 kA Interrupt, 2 Poles, C-Curve Trip
CSA 22.2 No. 5 | IEC 60947-2 | UL 489

Notice something off about this product?

ABB, SU202M-C30, Miniature Circuit Breaker, High Performance, Series: SU200M, 277/480Y VAC, 48/96 VDC, 30 A, 50/60 Hz Frequency, 10 kA Interrupt, C-Curve Trip, 2 Pole, Screw Connection, 18 to 4 AWG Wire, Class II Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 35 mm W x 111 mm H Dimensions, Light Gray

The SU200M, SU200MR, and S200UDC miniature circuit breakers offer a compact solution for protection requirements. The SU200 series devices are current-limiting according to UL 489 and DIN rail mounted.

Product Details

ABB, SU202M-C30, Miniature Circuit Breaker, High Performance, Series: SU200M, 277/480Y VAC, 48/96 VDC, 30 A, 50/60 Hz Frequency, 10 kA Interrupt, C-Curve Trip, 2 Pole, Screw Connection, 18 to 4 AWG Wire, Class II Insulation, IP20/IP40 Enclosure, DIN Rail Mounting, -25 to 55 deg C, 69 mm L x 35 mm W x 111 mm H Dimensions, Light Gray

The SU200M, SU200MR, and S200UDC miniature circuit breakers offer a compact solution for protection requirements. The SU200 series devices are current-limiting according to UL 489 and DIN rail mounted.

Attributes

Amperage Rating: 30 A
Country Of Origin: Germany
Number of Poles: 2
Color: Light Gray
Connection Type: Screw
Dimensions: 69 mm L x 35 mm W x 111 mm H
Enclosure Type: IP20/IP40
Frequency Rating: 50/60 Hz
Insulation Type: Class II
Interrupt Rating: 10 kA
Mounting Type: DIN Rail
Series: SU200M
Temperature Rating: -25 to 55 deg C
Trip Type: C-Curve
Type: High Performance
Voltage Rating: 277 to 480Y VAC/48 to 96 VDC
Wire Size: 18 to 4 AWG

Features

  • Current limiting according to UL 489
  • Failsafe bi-directional cylinder-lift terminal
  • High performance provides compact supplementary, energy limiting, circuit protection
  • Finger safe and multi-function terminals
