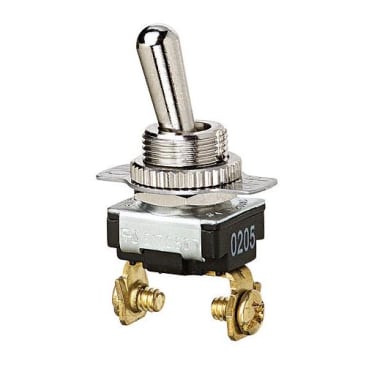

IDEAL 774017 SWITCH TOGGLE SPST O-F SCREW
MFR Part #:Â 774017
SKU #:Â 1054234
Brand:Â BUCHANAN
UPC:Â 781789740171
BUCHANAN 774017 Light/Medium Duty Toggle Switch, 120/240 VAC, 6/3 A, SPST ON-OFF Contact
On/Off Faceplate
Household Appliances and Equipment
RoHS Compliant | CSA Certified | cURus Listed
Notice something off about this product?
Product Details
Attributes
Features
Resources
BUCHANAN Toggle Switch, Light/Medium Duty, 120/240 VAC, 6/3 A, SPST ON-OFF Contact Configuration, 1 Pole, Toggle Actuator, Screw Terminal, 0.69 in L x 0.55 in W x 0.34 in H Dimensions
Amperage Rating:6/3 A
Number of Poles:1
Voltage Rating:120/240 VAC
Actuator:Toggle
Contact Configuration:SPST ON-OFF
Dimensions:0.69 in L x 0.55 in W x 0.34 in H
Terminal Type:Screw
Type:Light/Medium Duty
- 1/2 in diameter mounting hole
- Great for power tool and motor control switch applications
- Rugged long-wearing solid brass/nickel-plated bushings
- Dielectric Strength 1500 V
- Mechanical Life 100000 cycles
- Operating Temperature 32 deg F to 185 deg F
Product Details
BUCHANAN Toggle Switch, Light/Medium Duty, 120/240 VAC, 6/3 A, SPST ON-OFF Contact Configuration, 1 Pole, Toggle Actuator, Screw Terminal, 0.69 in L x 0.55 in W x 0.34 in H Dimensions
Attributes
Amperage Rating:Â 6/3 A
Number of Poles:Â 1
Voltage Rating:Â 120/240 VAC
Actuator:Â Toggle
Contact Configuration:Â SPST ON-OFF
Dimensions:Â 0.69 in L x 0.55 in W x 0.34 in H
Terminal Type:Â Screw
Type:Â Light/Medium Duty
Features
- 1/2 in diameter mounting hole
- Great for power tool and motor control switch applications
- Rugged long-wearing solid brass/nickel-plated bushings
- Dielectric Strength 1500 V
- Mechanical Life 100000 cycles
- Operating Temperature 32 deg F to 185 deg F
