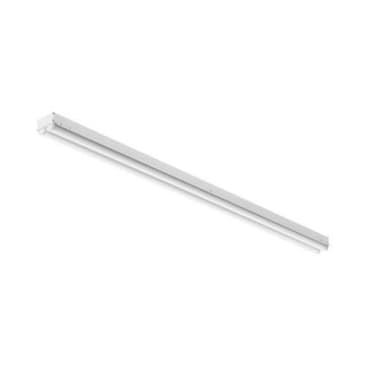

LITHONIA CDS L96 MVOLT DM 50K 80CRI WH Image 1
Clearance

LITHONIA 258WKG CDS L96 MVOLT DM 50K 80CRI WH

MFR Part #: CDS L96 MVOLT DM 50K 80CRI WH
SKU #: 1224544
Brand: Acuity Brands | Lithonia Lighting®
UPC: 191723036497
Lithonia Lighting® CDS L96 MVOLT DM 50K 80CRI WH Rectangular Strip Light Fixture, LED Lamp, 77 W Fixture, 120 to 277 VAC, High Gloss Baked White Enamel Housing
Commercial, Retail, Office, Warehouse, Display and Damp Locations
CSA Certified | DLC Listed | DLC Listed | QPL Listed

Notice something off about this product?

Lithonia Lighting® Strip Light Fixture, Rectangular, Series: CDS Series, 120 to 277 VAC, 77 W Fixture, LED Lamp, 121 Lumens/W Light Output, White Light, 5000 K Color Temperature, 80 CRI, Diffused Polycarbonate Lens, 9342 Lumens, Surface/Suspended Mounting, Steel Housing Material, High Gloss Baked White Enamel Housing Finish, 96 in L x 2.62 in W x 2.15 in H Dimensions

The CDS LED strip light is designed and priced to be a one for one replacement of 1, 2 or 4 lamp fluorescent strip lights with up to 9000 Lumens for your retail, warehouse and office applications. Easy to install, the CDS LED can be surface or suspension mounted. An alignment bracket comes with each fixture to keep your continuous row absolutely straight.

Product Details

Lithonia Lighting® Strip Light Fixture, Rectangular, Series: CDS Series, 120 to 277 VAC, 77 W Fixture, LED Lamp, 121 Lumens/W Light Output, White Light, 5000 K Color Temperature, 80 CRI, Diffused Polycarbonate Lens, 9342 Lumens, Surface/Suspended Mounting, Steel Housing Material, High Gloss Baked White Enamel Housing Finish, 96 in L x 2.62 in W x 2.15 in H Dimensions

The CDS LED strip light is designed and priced to be a one for one replacement of 1, 2 or 4 lamp fluorescent strip lights with up to 9000 Lumens for your retail, warehouse and office applications. Easy to install, the CDS LED can be surface or suspension mounted. An alignment bracket comes with each fixture to keep your continuous row absolutely straight.

Attributes

Clearance Items: Clearance
Color Temperature: 5000 K
Country Of Origin: Mexico
Fixture Wattage: 77 W
Lumens: 9342 Lumens
Voltage Rating: 120 to 277 VAC
Color Rendering Index (CRI): 80
Dimensions: 96 in L x 2.62 in W x 2.15 in H
Housing Finish: High Gloss Baked White Enamel
Housing Material: Steel
Lamp Type: LED
Lens Type: Diffused Polycarbonate
Light Color: White
Light Output: 121 Lumens/W
Mounting Type: Surface/Suspended
Series: CDS Series
Type: Rectangular

Features

  • Continuous row mounting
  • End-to-end illumination
  • No pixilation
  • 35 deg C ambient operating temperature
