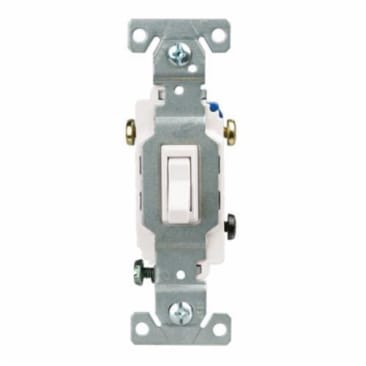

EAGLE 1301W Image 1

SINGLE POLE SWITCH EAGLE 1301W

MFR Part #: 1301W
SKU #: 0728912
Brand: Eaton Wiring Devices
UPC: 032664542756
Eaton Wiring Devices 1301W 1301 Non-Grounding Standard Grade Toggle Switch, 120 VAC, 15 A, 1/2 hp Power Rating
Residential
cULus Listed to UL20 | File No. E18704 | NOM 426 Certified | UL 20 E18704 Listed | NOM Approved | NAFTA Compliant and RoHS Compliant

Notice something off about this product?

Eaton Wiring Devices, 1301W, Toggle Switch, Non-Grounding Standard Grade, Series: 1301, 120 VAC, 15 A, 1/2 hp Power, 1 Pole, Toggle Actuator, Wall Mounting, Screw Terminal, Thermoplastic, White, Environmental Conditions: -20 to 60 deg C Temperature, 0.75 in W x 0.88 in D Dimensions

Longer, wider strap on Toggle Switches provides 40% more contact area to wall board. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call-backs due to job site breakage. Patented built-in wire looper for pre-looping. Three way switches feature additional push-in common termination for feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire. Tri-combo screws accept slotted-, Phillips, and Robertson-head tools for installations in both the U.S. and Canada.

Product Details

Eaton Wiring Devices, 1301W, Toggle Switch, Non-Grounding Standard Grade, Series: 1301, 120 VAC, 15 A, 1/2 hp Power, 1 Pole, Toggle Actuator, Wall Mounting, Screw Terminal, Thermoplastic, White, Environmental Conditions: -20 to 60 deg C Temperature, 0.75 in W x 0.88 in D Dimensions

Longer, wider strap on Toggle Switches provides 40% more contact area to wall board. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call-backs due to job site breakage. Patented built-in wire looper for pre-looping. Three way switches feature additional push-in common termination for feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire. Tri-combo screws accept slotted-, Phillips, and Robertson-head tools for installations in both the U.S. and Canada.

Attributes

Actuator: Toggle
Amperage Rating: 15 A
Color: White
Dimensions: 0.75 in W x 0.88 in D
Environmental Conditions: -20 to 60 deg C Temperature
Material: Thermoplastic
Mounting: Wall
Number of Poles: 1
Power Rating: 1/2 hp
Series: 1301
Terminal Type: Screw
Type: Non-Grounding Standard Grade
Voltage Rating: 120 VAC

Features

  • Three way switches feature additional push-in common termination for feed-through tapping
  • Standard grade
  • Non-grounding
  • 2.13 in L back
  • 3.28 in L screw to screw
  • Framed toggle
  • Side and push wire connection
  • Push-in terminals accept 14 AWG solid wire only, side wire terminals accept up to 10 AWG solid wire
  • Long, broad mounting strap virtually eliminates floating installations
  • Patented built-in wire stripper for 12 and 14 AWG wire to speed installation
  • Patented built-in wire looper for pre-looping
  • Tri-combo screws accept slotted, Phillips, and robertson head tools for installation flexibility
  • Lighted toggle glows in OFF position
  • 1/2 hp at 120 VAC/2 hp at 240 VAC
