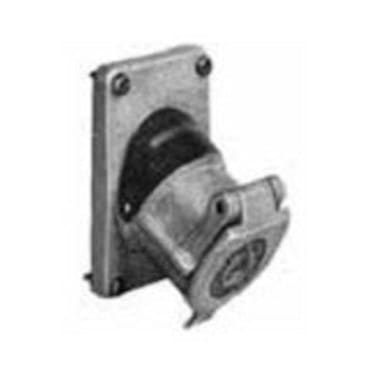

APPLETON ECSK2023 RECEPT COVER ASSY 120VAC CSA
Notice something off about this product?
Product Details
Attributes
Features
Resources
Appleton® U-LINE® Plugs and Receptacle, 125 VAC, 20 A, 1 hp, 3 Poles, 2 Wires, NEMA 5-15R/5-20R/6-20R, Copper Free Aluminum, 6.3 in L x 6.3 in W x 3 in D
U-Line™ factory sealed 15 and 20 A Plugs and receptacles feature a dead front design making them ideal for use with electrical equipment in hazardous locations. The neoprene gasket in the throat of the receptacle seals against the plug or the spring loaded cover to seal out water, dust and corrosive compounds. Although U-Line™ plugs can be used with ordinary receptacles, U-Line™ receptacles are designed so that they can't be energized by an ordinary plug.
- Factory sealed, external seals not required, arcing is safely confined to receptacle interior
- Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- ECP plug fits any standard non-explosionproof receptacle (NEMA 5-15R, 5-20R or 6-20R) as well as U-Line™ explosionproof receptacles
- Intermateable with competitors plugs of like configurations
- 0.538 to 0.639 in Dia plug cable
- Dead end mounting box entries
- ECP plug are copper free (4/10 of 1% maximum) aluminum with epoxy powder coat
- Fiberglass reinforced polyester insulating blocks
Product Details
Appleton® U-LINE® Plugs and Receptacle, 125 VAC, 20 A, 1 hp, 3 Poles, 2 Wires, NEMA 5-15R/5-20R/6-20R, Copper Free Aluminum, 6.3 in L x 6.3 in W x 3 in D
U-Line™ factory sealed 15 and 20 A Plugs and receptacles feature a dead front design making them ideal for use with electrical equipment in hazardous locations. The neoprene gasket in the throat of the receptacle seals against the plug or the spring loaded cover to seal out water, dust and corrosive compounds. Although U-Line™ plugs can be used with ordinary receptacles, U-Line™ receptacles are designed so that they can't be energized by an ordinary plug.
Attributes
Features
- Factory sealed, external seals not required, arcing is safely confined to receptacle interior
- Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- ECP plug fits any standard non-explosionproof receptacle (NEMA 5-15R, 5-20R or 6-20R) as well as U-Line™ explosionproof receptacles
- Intermateable with competitors plugs of like configurations
- 0.538 to 0.639 in Dia plug cable
- Dead end mounting box entries
- ECP plug are copper free (4/10 of 1% maximum) aluminum with epoxy powder coat
- Fiberglass reinforced polyester insulating blocks
