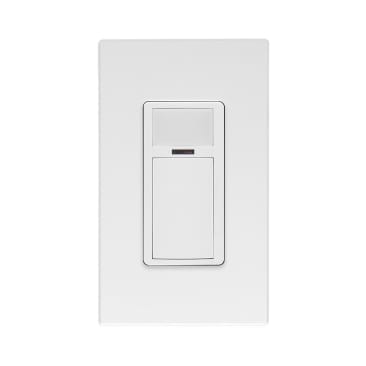

LEVITON ODSMT-MDW 120-277VAC MULTI-TECH SMART WALL BOX SWITCH WHITE
MFR Part #: ODSMT-MDW
SKU #: 1271055
Brand: Leviton®
UPC: 078477009543
Leviton® ODSMT-MDW Multi-Tech Smart Wallbox Sensor, 120 to 277 VAC, Wall Box Occupancy/Vacancy Sensor, 1100 sq-ft Coverage, 180 deg Viewing
IECC | 2022 Title 24, Part 6 | ASHRAE 90.1
Notice something off about this product?
Product Details
Attributes
Features
Resources
Leviton®, ODSMT-MDW, Smart Wallbox Sensor, Multi-Tech, 120 to 277 VAC, 20 A, 0.2, 0.3 W Power, Wall Box Occupancy/Vacancy Sensor, 1100 sq-ft Coverage, 180 deg Viewing, LED Lamp, 50/60 Hz Response, IP20 Enclosure, 0 to 40 deg C, White, 4.13 in H x 2.12 in W x 1.86 in D Dimensions
Amperage Rating:20 A
Color:White
Country Of Origin:CHINA, CN
Coverage:1100 sq-ft
Dimensions:4.13 in H x 2.12 in W x 1.86 in D
Enclosure Type:IP20
Lamp Type:LED
Mounting Type:Wall
Power Rating:0.2, 0.3 W
Response Frequency:50/60 Hz
Sensor Type:Wall Box Occupancy/Vacancy
Temperature Rating:0 to 40 deg C
Type:Multi-Tech
Viewing Angle:180 deg
Voltage Rating:120 to 277 VAC
- Can be used to comply with Part 6 occupancy/vacancy sensing, dimming, and manual-ON/auto-OFF requirements
- Fits in a standard wallbox and gangable with other units
- 180 deg field-of-view provides approximately 1,100 square feet of coverage
- Maximum sensing distance in front of the sensor is 30-40 ft and 15-20 ft on either side
- Microphonics technology able to detect human activity and does not require direct line-of-sight
- Integrated photocell for daylighting hold-OFF
- Use the Leviton Push to Pair (P2P) process to create a multi-way system for up to 5 devices
- Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth-enabled Android or iOS device
Product Details
Leviton®, ODSMT-MDW, Smart Wallbox Sensor, Multi-Tech, 120 to 277 VAC, 20 A, 0.2, 0.3 W Power, Wall Box Occupancy/Vacancy Sensor, 1100 sq-ft Coverage, 180 deg Viewing, LED Lamp, 50/60 Hz Response, IP20 Enclosure, 0 to 40 deg C, White, 4.13 in H x 2.12 in W x 1.86 in D Dimensions
Attributes
Amperage Rating: 20 A
Color: White
Country Of Origin: CHINA, CN
Coverage: 1100 sq-ft
Dimensions: 4.13 in H x 2.12 in W x 1.86 in D
Enclosure Type: IP20
Lamp Type: LED
Mounting Type: Wall
Power Rating: 0.2, 0.3 W
Response Frequency: 50/60 Hz
Sensor Type: Wall Box Occupancy/Vacancy
Temperature Rating: 0 to 40 deg C
Type: Multi-Tech
Viewing Angle: 180 deg
Voltage Rating: 120 to 277 VAC
Features
- Can be used to comply with Part 6 occupancy/vacancy sensing, dimming, and manual-ON/auto-OFF requirements
- Fits in a standard wallbox and gangable with other units
- 180 deg field-of-view provides approximately 1,100 square feet of coverage
- Maximum sensing distance in front of the sensor is 30-40 ft and 15-20 ft on either side
- Microphonics technology able to detect human activity and does not require direct line-of-sight
- Integrated photocell for daylighting hold-OFF
- Use the Leviton Push to Pair (P2P) process to create a multi-way system for up to 5 devices
- Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth-enabled Android or iOS device
