CUTLER HAMMER BR315 Image 1

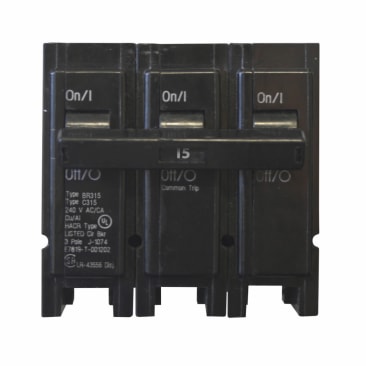

CUTLER HAMMER BR315 PUSH-IN 15 AMP 3 POLE BREAKER

MFR Part #: BR315
SKU #: 0711115
Brand: EATON
UPC: 786676367707
EATON BR315 Type BR Circuit Breaker, 240 VAC, 15 A, 10 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
10 years
Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment, Type BR Load Centers and Circuit Protection
CSA Certified | Federal Specification W-C-375 | NEMA Approved | UL 489

Notice something off about this product?

EATON Circuit Breaker, Type BR, 240 VAC, 15 A, 10 kA Interrupt, Thermal/Magnetic Trip, 3 Pole, 3 ph, 14 to 4 AWG Wire, NEMA 1/4X/3R, Plug-On Mount, 600 to 750 deg C, 3 in L x 3 in W x 3 in H

Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

Product Details

EATON Circuit Breaker, Type BR, 240 VAC, 15 A, 10 kA Interrupt, Thermal/Magnetic Trip, 3 Pole, 3 ph, 14 to 4 AWG Wire, NEMA 1/4X/3R, Plug-On Mount, 600 to 750 deg C, 3 in L x 3 in W x 3 in H

Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

Attributes

Amperage Rating: 15 A
Country Of Origin: Dominican Republic
Mounting Type: Plug-On
Number of Poles: 3
Voltage Rating: 240 VAC
Dimensions: 3 in L x 3 in W x 3 in H
Enclosure Type: NEMA 1/4X/3R
Interrupt Rating: 10 kA
Phase: 3, 3 ph
Temperature Rating: 60 to 75 deg C, 600 to 750 deg C
Trip Type: Thermal/Magnetic
Type: Type BR
Wire Size: 14 to 4 AWG, 14 to 4 AWG Aluminum/Copper

Features

  • Common trip requires three 1 in spaces
  • All BR circuit breakers have rejection tab feature
  • Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip free handle design
  • For 3-pole circuit breakers carry listing for HACR applications
