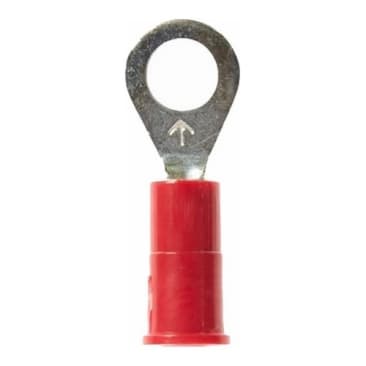

RING VINYL INSULATED HIGHLAND BAG (25/BAG) 3M RV18-10Q

MFR Part #: 7000133680
SKU #: 1159423
Brand: 3M™ | Highland™
UPC: 051128600436
Highland™ 7000133680 Insulated Terminal, 22 to 18 AWG Conductor, 0.93 in L, Butted Seam Barrel, Vinyl, Red
Building Fixtures or Luminaires, Signs and Wire Applications
UL Recognized File No. LR22190 | CSA Certified | RoHS Compliant | UL File No. E23438

Notice something off about this product?

Highland™, 7000133680, Terminal, Insulated, 22 to 18 AWG Conductor, #10 Stud, 0.93 in Length, Butted Seam Barrel, 1/4 in ID x 1/4 in L Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600/1000 VAC, Specifications: 0.145 in Dia Max Insulation, 0.33 in Clearance, -40 to 221 deg F, Vinyl, Tin Plated, Red

3M™ Highland™ Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Product Details

Highland™, 7000133680, Terminal, Insulated, 22 to 18 AWG Conductor, #10 Stud, 0.93 in Length, Butted Seam Barrel, 1/4 in ID x 1/4 in L Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600/1000 VAC, Specifications: 0.145 in Dia Max Insulation, 0.33 in Clearance, -40 to 221 deg F, Vinyl, Tin Plated, Red

3M™ Highland™ Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Attributes

Barrel Size: 1/4 in ID x 1/4 in L
Barrel Type: Butted Seam
Color: Red
Conductor Size: 22 to 18 AWG
Finish: Tin Plated
Length: .93 in
Material: Vinyl
Specifications: 0.145 in Dia Max Insulation, 0.33 in Clearance
Stud Size: #10
Temperature Rating: -40 to 221 deg F
Tongue Size: 0.31 in W x 0.03 in THK
Tongue Type: Ring
Type: Insulated Standard
Voltage Rating: 600/1000 VAC

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion-resistance
  • Crimp termination
  • Free hanging (in-line) mounting
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 deg f (-40 to 105 deg c)
