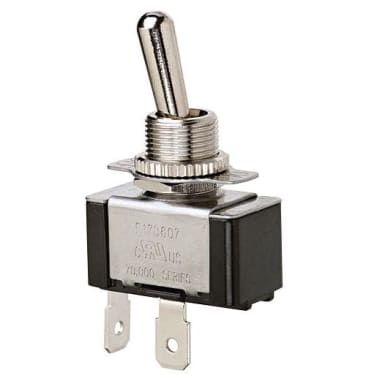

IDEAL 774010 SWITCH TOGGLE SPST O-F O-RING & SCREW
MFR Part #: 774010
SKU #: 1054229
Brand: IDEAL®
UPC: 783250573431
IDEAL® 774010 Standard Toggle Switch, 125/227 VAC, 20/10 A, 3/4 hp Power Rating, SPST ON-OFF Contact
Power Tool and Motor Control Switch Applications
RoHS Compliant | CSA Certified | UL Recognized
Notice something off about this product?
Product Details
Attributes
Features
Resources
IDEAL® Toggle Switch, Standard, 125/227 VAC, 20/10 A, 3/4 hp Power, SPST ON-OFF Contact Configuration, 21 A at 14.8 VDC Contact, 1 Pole, Toggle Actuator, Spade Terminal, 100000 Cycles Operating Cycles, Solid Brass, Environmental Conditions: 32 to 185 deg F Operating Temperature, 1.13 in L x 0.57 in W x 0.61 in H Dimensions
Actuator:Toggle
Amperage Rating:20/10 A
Contact Configuration:SPST ON-OFF
Contact Rating:21 A at 14.8 VDC
Dimensions:1.13 in L x 0.57 in W x 0.61 in H
Environmental Conditions:32 to 185 deg F Operating Temperature
Material:Solid Brass
Number of Poles:1
Operating Cycles:100000 Cycles
Power Rating:3/4 hp
Terminal Type:Spade
Type:Standard
Voltage Rating:125/227 VAC
- Rugged long-wearing solid brass/nickel-plated bushings
- 1/2 in diameter mounting hole
- Dielectric Strength - 1500V
- Mechanical Life - 100,000 cycles
Product Details
IDEAL® Toggle Switch, Standard, 125/227 VAC, 20/10 A, 3/4 hp Power, SPST ON-OFF Contact Configuration, 21 A at 14.8 VDC Contact, 1 Pole, Toggle Actuator, Spade Terminal, 100000 Cycles Operating Cycles, Solid Brass, Environmental Conditions: 32 to 185 deg F Operating Temperature, 1.13 in L x 0.57 in W x 0.61 in H Dimensions
Attributes
Actuator: Toggle
Amperage Rating: 20/10 A
Contact Configuration: SPST ON-OFF
Contact Rating: 21 A at 14.8 VDC
Dimensions: 1.13 in L x 0.57 in W x 0.61 in H
Environmental Conditions: 32 to 185 deg F Operating Temperature
Material: Solid Brass
Number of Poles: 1
Operating Cycles: 100000 Cycles
Power Rating: 3/4 hp
Terminal Type: Spade
Type: Standard
Voltage Rating: 125/227 VAC
Features
- Rugged long-wearing solid brass/nickel-plated bushings
- 1/2 in diameter mounting hole
- Dielectric Strength - 1500V
- Mechanical Life - 100,000 cycles
