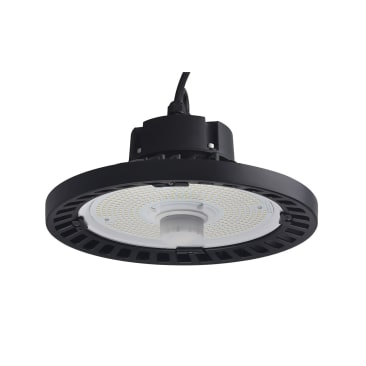

CSC HB7B-150W-50K-LV-GL 150W 50K HIGH BAY
MFR Part #:Â HB7B-150W-50K-LV-GL
SKU #:Â 1239332
Brand:Â CSC LED
UPC:Â 845599001379
Please note this item is discontinued (order fulfillment will depend on stock availability): CSC LED HB7B-150W-50K-LV-GL High Bay Fixture, LED Lamp, 150 W Fixture, 120 to 277 V, Black/Polyester Powder Coated Housing
5 years
Factories, Gas Stations, Gymnasiums, Grocery Stores and Warehouses Applications
cUL File No. E482965 | CSC/DLC File No. PLO2QUSTS55V | DLC Premium Listed
Notice something off about this product?
Product Details
Attributes
Features
Resources
CSC LED High Bay Fixture, Series: HB7B, 120 to 277 V, 150 W Fixture, LED Lamp, 146 Lumens/W Light Output, 5000 K Color Temperature, 80 CRI, Clear Glass Lens, 22070 Lumens, 2 m Pre-Wired Power Cord, IP65 Enclosure, Hook/Pendant Mounting, Aluminum Alloy Housing Material, Black/Polyester Powder Coated Housing Finish, 310 mm Dia x 185 mm H Dimensions
Country Of Origin:CHINA
Housing Finish:Black/Polyester Powder Coated
Color Rendering Index (CRI):80
Color Temperature:5000 K
Cord Type:2 m Pre-Wired Power
Dimensions:310 mm Dia x 185 mm H
Enclosure Type:IP65
Fixture Wattage:150 W
Housing Material:Aluminum Alloy
Lamp Type:LED
Lens Type:Clear Glass
Light Output:146 Lumens/W
Lumens:22070 Lumens
Mounting Type:Hook/Pendant
Series:HB7B
Voltage Rating:120 to 277 V
- Easy twist-on motion sensor
- High grade aluminum body for superior heat dissipation
- Optical grade high impact glass for maximum light transmittance
- Long life, elevated driver for cooler operation
- 2 m power cord
- 0 to 10 V dimmable driver
- HB7B-SENSOR will dim the fixture to 10%, but will not turn the fixture fully off
Product Details
CSC LED High Bay Fixture, Series: HB7B, 120 to 277 V, 150 W Fixture, LED Lamp, 146 Lumens/W Light Output, 5000 K Color Temperature, 80 CRI, Clear Glass Lens, 22070 Lumens, 2 m Pre-Wired Power Cord, IP65 Enclosure, Hook/Pendant Mounting, Aluminum Alloy Housing Material, Black/Polyester Powder Coated Housing Finish, 310 mm Dia x 185 mm H Dimensions
Attributes
Country Of Origin:Â CHINA
Housing Finish:Â Black/Polyester Powder Coated
Color Rendering Index (CRI):Â 80
Color Temperature:Â 5000 K
Cord Type:Â 2 m Pre-Wired Power
Dimensions:Â 310 mm Dia x 185 mm H
Enclosure Type:Â IP65
Fixture Wattage:Â 150 W
Housing Material:Â Aluminum Alloy
Lamp Type:Â LED
Lens Type:Â Clear Glass
Light Output:Â 146 Lumens/W
Lumens:Â 22070 Lumens
Mounting Type:Â Hook/Pendant
Series:Â HB7B
Voltage Rating:Â 120 to 277 V
Features
- Easy twist-on motion sensor
- High grade aluminum body for superior heat dissipation
- Optical grade high impact glass for maximum light transmittance
- Long life, elevated driver for cooler operation
- 2 m power cord
- 0 to 10 V dimmable driver
- HB7B-SENSOR will dim the fixture to 10%, but will not turn the fixture fully off
