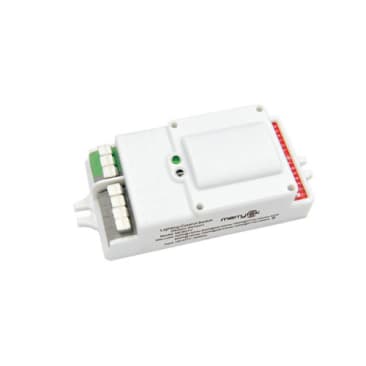

CSC MC601V MICROWAVE MOTION SENSOR 0-10V DIMMABLE
Notice something off about this product?
Product Details
Attributes
Features
Resources
CSC LED Microwave Motion Sensor, 277 VAC, 50/60 Hz, <1 W, Motion Detector Sensor, 8 m Sensing Range, 360 deg Sensing, 5 s to 30 min Timer, -35 to 70 deg C, IP20, Ceiling, Wall Mount, 3.6 in L x 1.77 in W x 1.12 in D
The MC601V innovative and active motion detectors with HF System 5.8 GHz. Motion can be detected through plastic, glass and thin non-metal materials. The sensors allow energy saving without compromising comfort.
- Automatic switching or dimming when used in combination with 1 to 10 V dimmable LED drivers or ballasts
- Built-in daylight sensor
- Compact size makes it suitable to fix within most luminaires
- Detection area, time delay and daylight threshold can be precisely set via dip switch
- Wide detection area, range up to 16 m in diameter
- Optional surface mounting and base mounting
Product Details
CSC LED Microwave Motion Sensor, 277 VAC, 50/60 Hz, <1 W, Motion Detector Sensor, 8 m Sensing Range, 360 deg Sensing, 5 s to 30 min Timer, -35 to 70 deg C, IP20, Ceiling, Wall Mount, 3.6 in L x 1.77 in W x 1.12 in D
The MC601V innovative and active motion detectors with HF System 5.8 GHz. Motion can be detected through plastic, glass and thin non-metal materials. The sensors allow energy saving without compromising comfort.
Attributes
Features
- Automatic switching or dimming when used in combination with 1 to 10 V dimmable LED drivers or ballasts
- Built-in daylight sensor
- Compact size makes it suitable to fix within most luminaires
- Detection area, time delay and daylight threshold can be precisely set via dip switch
- Wide detection area, range up to 16 m in diameter
- Optional surface mounting and base mounting
