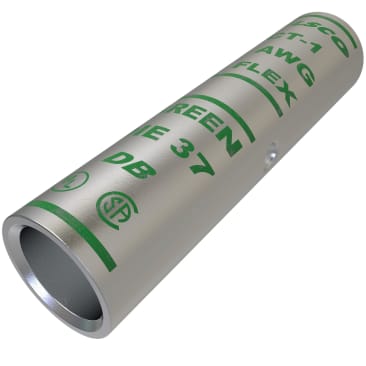

ILSCO CT-1 #1 COPPER COMPRESSION SLEEVE
MFR Part #: CT-1
SKU #: 1011257
Brand: ILSCO®
UPC: 783669113631
ILSCO® SureCrimp® CT-1 CT Series Short Barrel Compression Sleeve, 1 AWG Copper Conductor, Die Code: I-37, 1-7/8 in L, Copper
For use with splicer/reducer, grounding and bonding applications
CSA File No. LR29601 | NEBS Level 3 | UL 486A-BIUL 453G | UL 467 File No. E6207 | ECCN EAR99 | PROP65: Cancer -www.p65warnings.ca.gov
Notice something off about this product?
Product Details
Attributes
Features
Resources
ILSCO® SureCrimp® Compression Sleeve, Short Barrel, Series: CT Series, Copper Conductor, 1 AWG Conductor, Die Code: I-37, 1-7/8 in Length, Crimp Connector, 600 VAC, 90 deg C, 1 in L Stripe, Copper, Electro-Plated Tin, Green, 0.359 in ID x 0.468 in OD
Color:Green
Conductor Size:1 AWG
Conductor Type:Copper
Connector Type:Crimp
Country Of Origin:Mexico
Die Code:I-37
Dimensions:0.359 in ID x 0.468 in OD
Finish:Electro-Plated Tin
Length:1-7/8 in
Material:Copper
Series:CT Series
Specifications:1 in L Stripe
Temperature Rating:90 deg C
Type:Short Barrel
Voltage Rating:600 VAC
- Manufactured from high strength seamless copper tubing and electro-tin plated
- Short with chamfered end barrel, center wire stop
- Proper high voltage spacing and insulation techniques must be used, for high voltage applications up to 35 kV
- For copper conductor only copper class B concentric/compressed, class C concentric strand configurations
- Listed with ILSCO® tools ILC-12, ILC-12H, ILCB-12, ILC-14, ILC-14H, ILC-15, MT-25, 94285, IDT-12, IDT-12H, ILC-10 and IDTB-12
- Provides low contact resistance, maximum conductivity and excellent crimping characteristics and versatility
- Provides easy conductor insertion and insures maximum cable insertion
- Color code identifies the proper compression die
- Expanded wire size with ILSCO® dieless tools and BURNDY® Y644M dieless tool
- Reduces inventory requirements
- 2 AWG flexible alternate conductor size
- 6 to 1 AWG expanded conductor
- Insures maximum cable insertion
Product Details
ILSCO® SureCrimp® Compression Sleeve, Short Barrel, Series: CT Series, Copper Conductor, 1 AWG Conductor, Die Code: I-37, 1-7/8 in Length, Crimp Connector, 600 VAC, 90 deg C, 1 in L Stripe, Copper, Electro-Plated Tin, Green, 0.359 in ID x 0.468 in OD
Attributes
Color: Green
Conductor Size: 1 AWG
Conductor Type: Copper
Connector Type: Crimp
Country Of Origin: Mexico
Die Code: I-37
Dimensions: 0.359 in ID x 0.468 in OD
Finish: Electro-Plated Tin
Length: 1-7/8 in
Material: Copper
Series: CT Series
Specifications: 1 in L Stripe
Temperature Rating: 90 deg C
Type: Short Barrel
Voltage Rating: 600 VAC
Features
- Manufactured from high strength seamless copper tubing and electro-tin plated
- Short with chamfered end barrel, center wire stop
- Proper high voltage spacing and insulation techniques must be used, for high voltage applications up to 35 kV
- For copper conductor only copper class B concentric/compressed, class C concentric strand configurations
- Listed with ILSCO® tools ILC-12, ILC-12H, ILCB-12, ILC-14, ILC-14H, ILC-15, MT-25, 94285, IDT-12, IDT-12H, ILC-10 and IDTB-12
- Provides low contact resistance, maximum conductivity and excellent crimping characteristics and versatility
- Provides easy conductor insertion and insures maximum cable insertion
- Color code identifies the proper compression die
- Expanded wire size with ILSCO® dieless tools and BURNDY® Y644M dieless tool
- Reduces inventory requirements
- 2 AWG flexible alternate conductor size
- 6 to 1 AWG expanded conductor
- Insures maximum cable insertion
