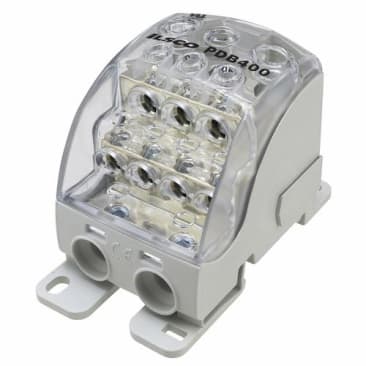

ILSCO PDB-400 Image 1

PWR DIST BLOCK 250AMP TOUCH SAFE ILSCO PDB-400

MFR Part #: PDB-400
SKU #: 1218556
Brand: ILSCO®
UPC: 990011000000
ILSCO® Touch Safe PDB-400 Type PDB Power Distribution Block, 600 VAC, 250 A, 1 Pole, 2 AWG to 250 kcmil/10 x 24 mm Line, 14 to 4 AWG/16 to 6 AWG/12 to 2 AWG Load Wire, Copper Alloy
Transparent Cover
For used in confined space
UL 1059 | IEC 60947-7-1 | UL Recognized | CE Certified | VDE Approved | PROP65: it is not known to contain any chemicals associated with this regulation

Notice something off about this product?

ILSCO® Touch Safe Power Distribution Block, Type PDB, 600 VAC, 250 A, 1 Pole, 1 Primary Connections/Pole, 7 Secondary Connection/Pole, 2 AWG to 250 kcmil/10 x 24 mm Line, 14 to 4 AWG/16 to 6 AWG/12 to 2 AWG Load Wire, Class J/T/RK1/RK5/G/CC Fuse, 100/200 kA Short Circuit, Copper Alloy, Electro Nickel/Tin Plated, Clear, 3.74 in L x 3.032 in W x 2.071 in H Dimensions

Product Details

ILSCO® Touch Safe Power Distribution Block, Type PDB, 600 VAC, 250 A, 1 Pole, 1 Primary Connections/Pole, 7 Secondary Connection/Pole, 2 AWG to 250 kcmil/10 x 24 mm Line, 14 to 4 AWG/16 to 6 AWG/12 to 2 AWG Load Wire, Class J/T/RK1/RK5/G/CC Fuse, 100/200 kA Short Circuit, Copper Alloy, Electro Nickel/Tin Plated, Clear, 3.74 in L x 3.032 in W x 2.071 in H Dimensions

Attributes

Amperage Rating: 250 A
Color: Clear
Dimensions: 3.74 in L x 3.032 in W x 2.071 in H
Finish: Electro Nickel/Tin Plated
Fuse Type: Class J/T/RK1/RK5/G/CC
Material: Copper Alloy
Number of Poles: 1
Primary Connections/Pole: 1
Secondary Connection/Pole: 7
Short Circuit Current Rating: 100/200 kA
Type: Type PDB
Voltage Rating: 600 VAC
Wire Size: 2 AWG to 250 kcmil/10 x 24 mm Line, 14 to 4 AWG/16 to 6 AWG/12 to 2 AWG Load

Features

  • Manufactured from high strength copper alloy
  • IP20 touch safe protection
  • Compact size
  • High short circuit rated (SCCR)
  • Surface or DIN rail mountable
  • Minimizes risk of electrical shock
  • Aids visual inspection
  • Added protection
  • Provides low contact resistance
  • Easily mounts into new or existing enclosure
  • Connects two or three PDB's, eliminates need for multiple wire inputs
  • (1) 2 AWG to 250 kcmil, 10 x 24 mm line, (3) 14 to 4 AWG (2) 16 to 6 AWG (2) 12 to 2 AWG load UL rated conductor range
  • (1) 2 AWG to 250 kcmil line, (3) 14 to 4 AWG (2) 14 to 6 AWG (2) 12 to 2 AWG load high SCCR conductor range
