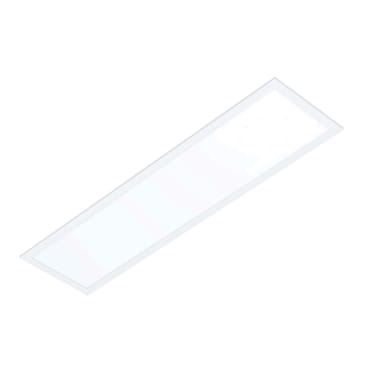

RAB 071435 Image 1

RAB 071435 CPL14-LED30-B-3.5K-DIM 1 X 4 FLAT PANEL 120-277V

MFR Part #: 071435
SKU #: 1224335
Brand: RAB® Design Lighting
UPC: 61184714350
RAB® 071435 CPL14-LED30 Standard Indoor Ceiling Panel Fixture, LED Lamp, 120 to 277 V
5 years
Offices, Schools, Retail and Commercial Spaces Applications
cULus Listed | DLC Premium Listed

Notice something off about this product?

RAB® Indoor Ceiling Panel Fixture, Standard, Series: CPL14-LED30, 120 to 277 V, Backlit Lighting Technology, LED Lamp, 30 W Lamp, 125 Lumens/W Light Output, 3500 K Color Temperature, 82.8 CRI, 0 to 10 VDC Dimming Ballast, Acrylic/PMMA Lens, 3750 Lumens, IP20 Enclosure, T-Bar Ceiling Mounting, Aluminum Housing Material, 4 ft L x 1 ft W x 1.61 in H Dimensions

The CPL-LED fixture is a backlit LED ceiling panel that provides uniform distribution, superior performance and reduced glare. The fixture is ideal for offices, schools, retail and commercial spaces.

Product Details

RAB® Indoor Ceiling Panel Fixture, Standard, Series: CPL14-LED30, 120 to 277 V, Backlit Lighting Technology, LED Lamp, 30 W Lamp, 125 Lumens/W Light Output, 3500 K Color Temperature, 82.8 CRI, 0 to 10 VDC Dimming Ballast, Acrylic/PMMA Lens, 3750 Lumens, IP20 Enclosure, T-Bar Ceiling Mounting, Aluminum Housing Material, 4 ft L x 1 ft W x 1.61 in H Dimensions

The CPL-LED fixture is a backlit LED ceiling panel that provides uniform distribution, superior performance and reduced glare. The fixture is ideal for offices, schools, retail and commercial spaces.

Attributes

Ballast Type0 to 10 VDC Dimming
Color Rendering Index (CRI)82.8
Color Temperature3500 K
Dimensions4 ft L x 1 ft W x 1.61 in H
Enclosure TypeIP20
Housing MaterialAluminum
Lamp TypeLED
Lamp Wattage30 W
Lens TypeAcrylic/PMMA
Light Output125 Lumens/W
Lighting TechnologyBacklit
Lumens3750 Lumens
Mounting TypeT-Bar Ceiling
SeriesCPL14-LED30
TypeStandard
Voltage Rating120 to 277 V

Features

  • Backlit ceiling panels with aluminum frame and PMMA lens
