BRASSCRAFT G2BRPX14X C Image 1

BRASSCRAFT G2BRPX14X CPEF 1/2X3/8 PEXXCOMP STRAIGHT SUPPLY VALVE

MFR Part #: G2BRPX14X C
SKU #: 1163625
Brand: BrassCraft®
UPC: 773491050327
BrassCraft® G2BRPX14X C G2™ 1/4 Turn Straight Stop, 1/2 x 3/8 in Nominal, PEX Crimp Barb x Compression, 125 psi, Brass Body, Polished Chrome, Domestic
Residential and Commercial
ASME A112.18.1 | CSA B125.1 File No.0645/204593 | IAPMO Listed

Notice something off about this product?

BrassCraft® Straight Stop, 1/4 Turn, Series: G2™, 1/2 x 3/8 in Nominal, PEX Crimp Barb x Compression End Style, 125 psi Pressure, Media: Water, Brass Body, Brass Trim, Rubber Stem Barrel/Rubber O-Ring Softgoods, 40 to 140 deg F, 1.03 x 2.05 in Dimension, Polished Chrome, Domestic

Manufactured to the highest quality standards, G2™ Series 1/4-Turn stops offer reliable performance, superior quality and an exceptional value. These stops provide, fast, convenient and reliable 1/4-Turn operation with positive shut-off.

Product Details

BrassCraft® Straight Stop, 1/4 Turn, Series: G2™, 1/2 x 3/8 in Nominal, PEX Crimp Barb x Compression End Style, 125 psi Pressure, Media: Water, Brass Body, Brass Trim, Rubber Stem Barrel/Rubber O-Ring Softgoods, 40 to 140 deg F, 1.03 x 2.05 in Dimension, Polished Chrome, Domestic

Manufactured to the highest quality standards, G2™ Series 1/4-Turn stops offer reliable performance, superior quality and an exceptional value. These stops provide, fast, convenient and reliable 1/4-Turn operation with positive shut-off.

Attributes

Connection TypePEX Crimp Barb x Compression
Country Of OriginUS
Nominal Size1/2 x 3/8 in
SeriesG2™
Type1/4 Turn
Body MaterialBrass

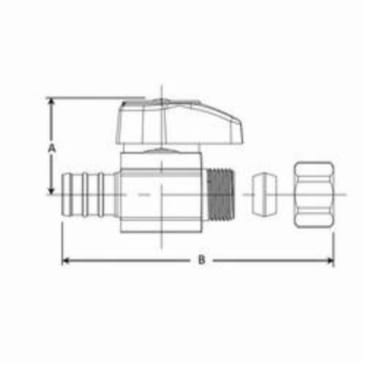

Dimensions1.03 x 2.05 in
Domestic/ImportDomestic
Finish/ColorPolished Chrome
Fitting/Connector TypePEX Crimp Barb x Compression
MediaWater
Pressure Rating125 psi
Softgoods MaterialRubber Stem Barrel/Rubber O-Ring
Temperature Rating40 to 140 deg F
Trim MaterialBrass

Features

  • Positive 1/4 turn shut-off
  • Full flow operation with no waterway obstructions
  • Machined one-piece brass body provides strength, durability and long-lasting performance
  • Push connect technology
  • No special installation tools required
  • For use with Copper, PEX and CPVC
