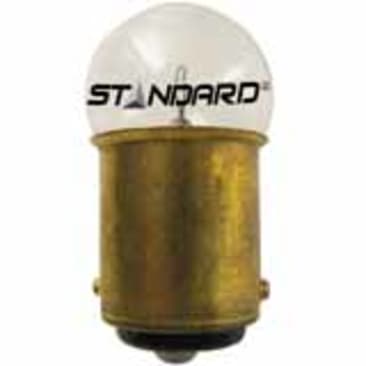

STANPRO 82 MINIATURE LAMP

MFR Part #: 50355
SKU #: 0762590
Brand: Stanpro
UPC: 069549003552
Please note this item is discontinued (order fulfillment will depend on stock availability): STANDARD® 50355 Miniature Lamp, 6.63 W, BA15d Double Contact Bayonet Incandescent Lamp, G6 Shape, 6 Lumens
This product may be subject to ecological fees.
For instrument panels, indicator or signal lights, toys, flashlights as well as aviation and automobile lighting

Notice something off about this product?

STANDARD® Miniature Lamp, 82 G6/CL/6.5V/1.02A/BA15d/STD Designation, 6.63 W Wattage, 6.5 VAC, 1.02 A, Incandescent Lamp, BA15d Double Contact Bayonet Lamp Base, G6 Shape, 6 Lumens, 500 hr Average Life, Clear Lamp, C-2R Filament, 0.78 in Dia x 1.46 in L Dimensions

Miniature lamps perform an important and often vital part whenever they are used in a system. They are designed for applications where specific size, voltage, watts or amperes are required. They are usually low in cost and provide long life. Miniature lamps can be found in applications ranging from toys to lighting the instrument panel of an aircraft.

Product Details

STANDARD® Miniature Lamp, 82 G6/CL/6.5V/1.02A/BA15d/STD Designation, 6.63 W Wattage, 6.5 VAC, 1.02 A, Incandescent Lamp, BA15d Double Contact Bayonet Lamp Base, G6 Shape, 6 Lumens, 500 hr Average Life, Clear Lamp, C-2R Filament, 0.78 in Dia x 1.46 in L Dimensions

Miniature lamps perform an important and often vital part whenever they are used in a system. They are designed for applications where specific size, voltage, watts or amperes are required. They are usually low in cost and provide long life. Miniature lamps can be found in applications ranging from toys to lighting the instrument panel of an aircraft.

Attributes

Country Of Origin: Taiwan
Filament: C-2R
Shape: G6
Wattage: 6.63 W
Additional Information: C-2R Filament, 1.02 A Current Rating
Amperage Rating: 1.02 A
Average Life: 500 hr
Bulb Base: Double Contact Bayonet
Bulb Base Code: BA15d
Bulb Designation: 82 G6/CL/6.5V/1.02A/BA15D/STD
Bulb Finish: Clear
Bulb Shape: Globe
Bulb Shape Code: G6
Designation: 82 G6/CL/6.5V/1.02A/BA15d/STD
Diameter: .78 in
Dimensions: 0.78 in Dia x 1.46 in L
Lamp Base Type: BA15d Double Contact Bayonet
Lamp Finish: Clear
Lamp Type: Incandescent
Lumens: 6 Lumens
Voltage Rating: 6.5 VAC, 6.5 V

Features

  • STANDARD® miniature lamps encompass a wide range of shapes, bases and filament configurations, each made for very specific applications
  • Low in cost and long in life
  • Incandescent miniature lamps are ideal for applications requiring higher light output or higher temperature operation than might be available with the LED equivalent

Resources

Owners/User Manual
