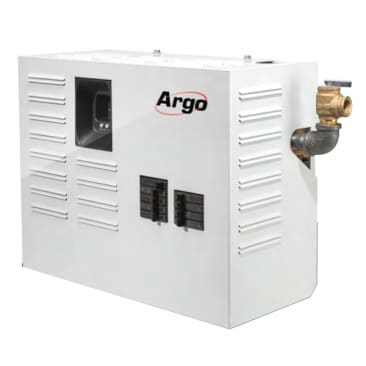

AT ELECTRIC BOILER 2 ELEMENT / 12KW ARGO AT122610C
MFR Part #:Â AT122610C
SKU #:Â 1115232
Brand:Â Argo
UPC:Â 400007417656
Argo AT122610C Electric BoilerWith Breaker, 41000 Btu/hr BTU, 240 VAC, 50 A, 12 kW, 4.1 gpm, Wall Hung Mounting
For radiant systems, applications requiring special temperature settings and as a back-up heat source for solar applications
ASME, C/US CSA Certified, CRN#A5153.31247890TYN
Notice something off about this product?
Product Details
Attributes
Features
Resources
Argo Electric BoilerWith Breaker, 240 VAC, 50 A, 12 kW, 41000 Btu/hr, 4.1 gpm Flow Rate, 1-1/4 in NPT Inlet/Outlet Connection, Wall Hung Mounting, Cast Iron, 90 to 180 deg F, 9-1/32 in W x 18-5/8 in D x 16-15/32 in H
Amperage Rating:50 A
BTU Rating:41000 Btu/hr
Connection Type:1-1/4 in NPT Inlet/Outlet
Dimensions:9-1/32 in W x 18-5/8 in D x 16-15/32 in H
Flow Rate:4.1 gpm
Material:Cast Iron
Mounting Type:Wall Hung
Power Rating:12 kW
Temperature Rating:90 to 180 deg F
Voltage Rating:240 VAC
- Compact wall hung design
- Zero emissions, green alternative
- Advanced microprocessor control: safely and efficiently controls the elements by monitoring the relay contacts that power the elements
- An advanced load managing controller - gives you the option to allow your utility or electric co-op to remotely control the boiler, reducing peak demands
- Proven one-piece cast iron heat exchanger backed by a 20 years warranty
- 6000 element size
- 70 A minimum circuit ampacity and suggested bracker
- LED display with 3 button user interface and error code messaging with audible alarm
- Element staging with rotation
- Dual set points for high/low temperature operation
- Dry fire protection on initial startup
- Terminal connections for adding a flow sensor and low water cutoff
- Load management terminal connection
- Circulator pump terminal with pump exercising
- Three wire thermostat connection and anti-short cycle timer
Product Details
Argo Electric BoilerWith Breaker, 240 VAC, 50 A, 12 kW, 41000 Btu/hr, 4.1 gpm Flow Rate, 1-1/4 in NPT Inlet/Outlet Connection, Wall Hung Mounting, Cast Iron, 90 to 180 deg F, 9-1/32 in W x 18-5/8 in D x 16-15/32 in H
Attributes
Amperage Rating:Â 50 A
BTU Rating:Â 41000 Btu/hr
Connection Type:Â 1-1/4 in NPT Inlet/Outlet
Dimensions:Â 9-1/32 in W x 18-5/8 in D x 16-15/32 in H
Flow Rate:Â 4.1 gpm
Material:Â Cast Iron
Mounting Type:Â Wall Hung
Power Rating:Â 12 kW
Temperature Rating:Â 90 to 180 deg F
Voltage Rating:Â 240 VAC
Features
- Compact wall hung design
- Zero emissions, green alternative
- Advanced microprocessor control: safely and efficiently controls the elements by monitoring the relay contacts that power the elements
- An advanced load managing controller - gives you the option to allow your utility or electric co-op to remotely control the boiler, reducing peak demands
- Proven one-piece cast iron heat exchanger backed by a 20 years warranty
- 6000 element size
- 70 A minimum circuit ampacity and suggested bracker
- LED display with 3 button user interface and error code messaging with audible alarm
- Element staging with rotation
- Dual set points for high/low temperature operation
- Dry fire protection on initial startup
- Terminal connections for adding a flow sensor and low water cutoff
- Load management terminal connection
- Circulator pump terminal with pump exercising
- Three wire thermostat connection and anti-short cycle timer
