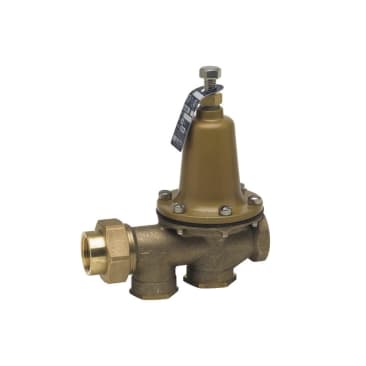

WATTS 0125287 LF25AUB-DU-PEXXPEX 3/4 PEX UNION 25-75PSI PRESSURE REDUCING VALVE

MFR Part #: 0125287
SKU #: 1062294
Brand: WATTS®
UPC: 098268859997
WATTS® 0125287 LF25AUB-Z3 Standard Capacity Pressure Reducing Valve, 3/4 in Nominal, Double Union PEX End Style, 300 psi Pressure, Copper Silicon Alloy Body
Limited
Sealed Spring Cage, Stainless Steel Adjusting and Cage Screw
Commercial and Residential
ASSE 1003 | ANSI A112.26.2 | CSA B356 | IAPMO Listed | MIL-V-18146B Type I | NSF/ANSI 61-G | UPC Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Notice something off about this product?

WATTS®, 0125287, Pressure Reducing Valve, Standard Capacity, Series: LF25AUB-Z3, 3/4 in Nominal, Double Union PEX End Style, 300 psi Pressure, 160 deg F, Media: Water, 6-1/2 in Inlet to Outlet Length, Copper Silicon Alloy Body, Polymer Seat Trim, EPDM Softgoods, 3-1/8 in D x 7 in H Dimensions

This 3/4 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. This assembly consists of a lead free brass body, replaceable seat module, double union crimp inlet and outlet for PEX tubing, and a bypass feature to control thermal expansion pressure. The reduced pressure rating is set at 50 psi (345 kPa). The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar).

Product Details

WATTS®, 0125287, Pressure Reducing Valve, Standard Capacity, Series: LF25AUB-Z3, 3/4 in Nominal, Double Union PEX End Style, 300 psi Pressure, 160 deg F, Media: Water, 6-1/2 in Inlet to Outlet Length, Copper Silicon Alloy Body, Polymer Seat Trim, EPDM Softgoods, 3-1/8 in D x 7 in H Dimensions

This 3/4 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. This assembly consists of a lead free brass body, replaceable seat module, double union crimp inlet and outlet for PEX tubing, and a bypass feature to control thermal expansion pressure. The reduced pressure rating is set at 50 psi (345 kPa). The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar).

Attributes

Body Material: Copper Silicone, Copper Silicon Alloy
Connection Type: FNPT x NPT
Country Of Origin: US
Dimensions: 3-1/8 in D x 7 in H, 5-5/16 in L x 3-1/8 in W x 7 in H
Disc Material: EPDM
End Style: Double Union PEX
Inlet to Outlet Length: 6-1/2 in
Lead-Free/Contains Lead: Lead-Free
Media: Water
Nominal Size: 3/4 in
Pressure Range: 300 psi
Pressure Rating: 25 to 75 psi
Seat Material: Polymer
Series: LF25AUB-Z3, LF25AUB-Z3 Series
Softgoods Material: EPDM
Temperature Rating: 160 deg F, 33 to 160 deg F
Trim Material: Polymer Seat
Type: Standard Capacity

Features

  • Replaceable seat module
  • Integral stainless steel strainer removable for cleaning
  • Bypass feature controls thermal expansion pressure
