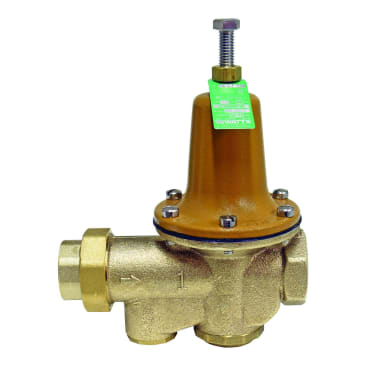

WATTS 0009309 LF25AUB-Z3 1 IP UNION 25-75PSI PRESSURE REDUCING VALVE

MFR Part #: 0009309
SKU #: 1106194
Brand: WATTS®
UPC: 098268330427
WATTS® 0009309 LF25AUB-Z3 Pressure Reducing Valve, 1 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body
1 year Limited
Commercial and Residential
ANSI A112.26.2 | ASSE Standard 1003 | CSA Standard B356 | IAPMO Listed | MIL-V-18146B Type I | NSF Approved | Southern Standard Plumbing Code | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Notice something off about this product?

WATTS® Pressure Reducing Valve, Series: LF25AUB-Z3, 1 in Nominal, FNPT Union x FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 8-3/4 in Inlet to Outlet Length, 9 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm/Polymer Seat

This 1 inch lead free brass water pressure reducing valve is the standard model, designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).

Product Details

WATTS® Pressure Reducing Valve, Series: LF25AUB-Z3, 1 in Nominal, FNPT Union x FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 8-3/4 in Inlet to Outlet Length, 9 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm/Polymer Seat

This 1 inch lead free brass water pressure reducing valve is the standard model, designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).

Attributes

Body Material: Cast Copper Silicon Alloy
Country Of Origin: US
Domestic/Import: Domestic
End Style: FNPT Union x FNPT
Inlet to Outlet Length: 8-3/4 in
Media: Water
Nominal Size: 1 in
Pressure Range: 25 to 75 psi
Series: LF25AUB-Z3
Softgoods Material: Reinforced EPDM Diaphragm/Polymer Seat
Temperature Rating: 33 to 160 deg F
Top to Inlet Center: 9 in

Features

  • Integral stainless steel strainer removable for cleaning
  • Replaceable seat module
  • Serviceable in line
  • Bypass feature controls thermal expansion pressure
  • Sealed spring cage with stainless steel cage screws
  • Temperature range is 33 to 180 deg F
  • Designed to reduce incoming water pressure to protect plumbing systems
