WATTS 0009898 Image 1

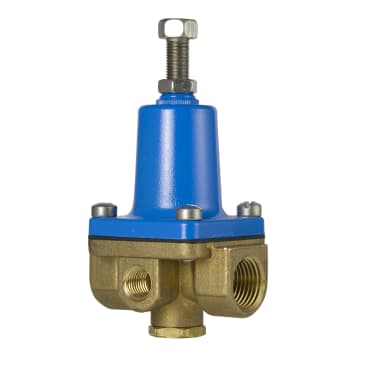

WATTS 0009898 LF263AP 1/2 IP DIAPHRAGM 20-175PSI PRESSURE RELIEF PILOT

MFR Part #: 0009898
SKU #: 1106655
Brand: WATTS®
UPC: 098268430530
WATTS® 0009898 Pressure Reducing Pilot, 1/2 x 1/4 in Nominal, FNPT End Style, 400 psi Pressure, Brass Body
1 year
PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Notice something off about this product?

WATTS® Pressure Reducing Pilot, 1/2 x 1/4 in Nominal, FNPT, 400 psi, T-Handle Actuator, 2.69 in Inlet to Outlet Length, 3.91 in Top to Inlet Center, Brass Body, Buna-N® Diaphragm

This 1/2 inch lead free small water pressure reducing pilot is used in small general purpose applications to regulate water pressure in piping systems using water and No. 2 fuel oil. It has an oversized orifice and is ideally used on beverage dispensing and paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications. It consists of a lead free brass body with an adjusting tee handle, NPT threaded female connections, three-way low water pressure gauge port, aluminum spring cage, Buna-N stainless steel disc, and a reinforced Buna-N diaphragm. The reduced water pressure range is 20 to 175 psi (1.4 to 12.1 bar) and is factory set at 75 psi (5.2 bar).

Product Details

WATTS® Pressure Reducing Pilot, 1/2 x 1/4 in Nominal, FNPT, 400 psi, T-Handle Actuator, 2.69 in Inlet to Outlet Length, 3.91 in Top to Inlet Center, Brass Body, Buna-N® Diaphragm

This 1/2 inch lead free small water pressure reducing pilot is used in small general purpose applications to regulate water pressure in piping systems using water and No. 2 fuel oil. It has an oversized orifice and is ideally used on beverage dispensing and paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications. It consists of a lead free brass body with an adjusting tee handle, NPT threaded female connections, three-way low water pressure gauge port, aluminum spring cage, Buna-N stainless steel disc, and a reinforced Buna-N diaphragm. The reduced water pressure range is 20 to 175 psi (1.4 to 12.1 bar) and is factory set at 75 psi (5.2 bar).

Attributes

Country Of Origin: US
Nominal Size: 1/2 x 1/4 in
Pressure Rating: 400 psi
Actuator Type: T-Handle
Body Material: Brass
End Style: FNPT
Inlet to Outlet Length: 2.69 in
Series: LF263AP
Softgoods Material: Buna-N® Diaphragm
Top to Inlet Center: 3.91 in

Features

  • Stainless steel stem and spring
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • Oversized orifice
  • Lead free brass body construction
  • Tee handle adjustment

Resources

6f18d0f1eb59274901785cd6d698a08af256f4e4_1079.pdf
Specification Sheet
Technical Bulletin
