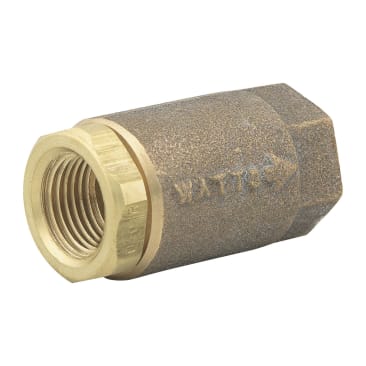

WATTS 0555180 Image 1
WATTS 0555180 Image 2
WATTS 0555180 Image 3
WATTS 0555180 Image 4
content loaded
WATTS 0555180 Image 1

WATTS 0555180 LF600 2 MAXI-FLO CHECK VALVE

MFR Part #: 0555180
SKU #: 0464585
Brand: WATTS®
UPC: 098268432909
WATTS® Maxi-Flo® 0555180 Silent Check Valve, 2 in Nominal, Thread End Style, Cast Copper Silicon Alloy Body
1 year Limited
Commercial, Residential, Industrial and Solar
ASSE Listed | FM Approved | NSF Approved | UL Listed | ULC Listed | USC Certified | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Notice something off about this product?

WATTS® Maxi-Flo® Silent Check Valve, 2 in Nominal, Thread End Style, 400 psi Pressure, -20 to 100 deg F, Yes Low Lead Compliance, 4-1/2 in Inlet to Outlet Length, Cast Copper Silicon Alloy Body, PTFE Seat/Stainless Steel Spring Trim, Nitrile O-Ring Softgoods, 3-1/2 in H Dimensions

This 2 inch lead free Maxi-Flo check valve is used in general industrial and plumbing applications to prevent the effects of water hammer in the piping system. It provides a silent operation with low pressure drop and can be installed horizontally or vertically. This valve consists of a lead free brass body, lead free brass check and adapter, conical lead free brass disc, PTFE seat and threaded end connections. The maximum working pressure rating is 400 psi (27.6 bar), WOG non-shock at minus 20 to 100 degrees F (minus 29 to 38 degrees C) and 15 psi (1 bar) WSP at 250 degrees F (121 degrees C).

Product Details

WATTS® Maxi-Flo® Silent Check Valve, 2 in Nominal, Thread End Style, 400 psi Pressure, -20 to 100 deg F, Yes Low Lead Compliance, 4-1/2 in Inlet to Outlet Length, Cast Copper Silicon Alloy Body, PTFE Seat/Stainless Steel Spring Trim, Nitrile O-Ring Softgoods, 3-1/2 in H Dimensions

This 2 inch lead free Maxi-Flo check valve is used in general industrial and plumbing applications to prevent the effects of water hammer in the piping system. It provides a silent operation with low pressure drop and can be installed horizontally or vertically. This valve consists of a lead free brass body, lead free brass check and adapter, conical lead free brass disc, PTFE seat and threaded end connections. The maximum working pressure rating is 400 psi (27.6 bar), WOG non-shock at minus 20 to 100 degrees F (minus 29 to 38 degrees C) and 15 psi (1 bar) WSP at 250 degrees F (121 degrees C).

Attributes

Body Material: Bronze, Cast Copper Silicon Alloy
Country Of Origin: US
End Style: Thread
Nominal Size: 2 in
Pressure Rating: 400 psi
Connection Type: FNPT
Dimensions: 3-1/2 in H
Disc Material: Brass
Inlet to Outlet Length: 4-1/2 in
Low Lead Compliance: Yes
Media: Gas, Oil, Steam, Water
Seat Material: PTFE
Series: LF600, 600 Series
Softgoods Material: Nitrile O-Ring
Temperature Rating: -20 to 100 deg F
Trim Material: PTFE Seat/Stainless Steel Spring

Features

  • Silent operation
  • Conical lead free check for full fluid flow
  • Install in horizontal or vertical position with upward flow

Resources

Specification Sheet
