WATTS 0063231 Image 1

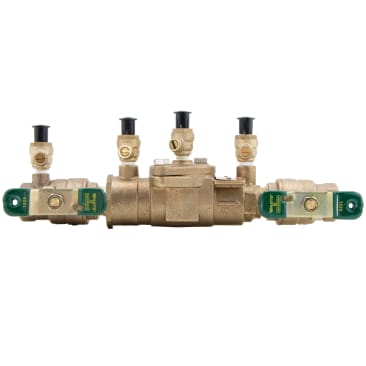

WATTS 0063231 LF007M3-QT 3/4 IP DOUBLE CHECK VALVE ASSEMBLY

MFR Part #: 0063231
SKU #: 1106022
Brand: WATTS®
UPC: 098268209730
Please note this item is discontinued (order fulfillment will depend on stock availability): WATTS® 0063231 LF007 Double Check Valve Assembly, 3/4 in Nominal, FNPT End Style, Quarter-Turn Ball Valve, Cast Copper Silicon Alloy Body, Dual Check
1 year Limited
(4) Test Cocks
Non-Health Hazard
ASSE 1015 | AWWA C510 | CSA B64.5 | IAPMO PS31 | NSF Approved | UPC Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Notice something off about this product?

WATTS®, 0063231, Double Check Valve Assembly, Series: LF007, 3/4 in Nominal, FNPT End Style, 175 psi Pressure, 33 to 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Dual Check Backflow, Cast Copper Silicon Alloy Body, Fused Epoxy Coated, 11-1/8 in L Dimensions

Series LF007 Double Check Valve Assemblies shall be installed at referenced cross-connections to prevent the backflow of polluted water into the potable water supply. Only those cross-connections identified by local inspection authorities as non-health hazard shall be allowed the use of an approved double check valve assembly. The LF007 features Lead Free construction to comply with Lead Free installation requirements. Check with local authority having jurisdiction regarding vertical orientation, frequency of testing or other installation requirements. The valve shall meet the requirements of ASSE Std. 1015 and AWWA Std. C510. Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California.

Product Details

WATTS®, 0063231, Double Check Valve Assembly, Series: LF007, 3/4 in Nominal, FNPT End Style, 175 psi Pressure, 33 to 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Dual Check Backflow, Cast Copper Silicon Alloy Body, Fused Epoxy Coated, 11-1/8 in L Dimensions

Series LF007 Double Check Valve Assemblies shall be installed at referenced cross-connections to prevent the backflow of polluted water into the potable water supply. Only those cross-connections identified by local inspection authorities as non-health hazard shall be allowed the use of an approved double check valve assembly. The LF007 features Lead Free construction to comply with Lead Free installation requirements. Check with local authority having jurisdiction regarding vertical orientation, frequency of testing or other installation requirements. The valve shall meet the requirements of ASSE Std. 1015 and AWWA Std. C510. Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California.

Attributes

Backflow Type: Dual Check
Connection Type: FNPT
Country Of Origin: US
Nominal Size: 3/4 in
Ball Valve/Gate Valve Type: Quarter-Turn Ball Valve
Body Material: Cast Copper Silicon Alloy
Dimensions: 11-1/8 in L
Domestic/Import: Domestic
Finish: Fused Epoxy Coated
Pressure Rating: 175 psi
Series: LF007
Temperature Rating: 33 to 180 deg F

Features

  • Ease of maintenance only one cover
  • Replaceable seat and discs
  • Modular design
  • Low pressure drop
  • Top mounted resilient seated test cocks
