WATTS 17103031 Image 1

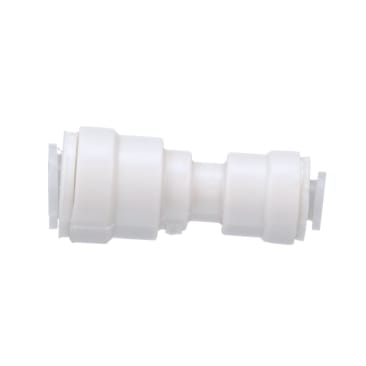

WATTS 17103031 1/2X3/8 OD QUICK CONN TUBE-TUBE UNION PL3031

MFR Part #: 17103031
SKU #: 1244764
Brand: WATTS®
UPC: 048643197664
WATTS® 17103031 Quick-Connect Coupling, 1/2 x 3/8 in Nominal, Tube OD End Style, Polypropylene, Import

Notice something off about this product?

WATTS®, 17103031, Coupling, Quick-Connect, Fitting/Connector: Coupling, 1/2 x 3/8 in Nominal, Tube OD End Style, 150 psi at 70 deg F/60 psi at 140 deg F Pressure, 33 to 140 deg F, Polypropylene, Plastic, Off-White, 3/8 x 1/4 in ID Dimensions, Import

This 1/2 inch OD x 3/8 inch OD AquaLock(TM) mini reducing coupling works with plastic or soft copper tubing. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.

Product Details

WATTS®, 17103031, Coupling, Quick-Connect, Fitting/Connector: Coupling, 1/2 x 3/8 in Nominal, Tube OD End Style, 150 psi at 70 deg F/60 psi at 140 deg F Pressure, 33 to 140 deg F, Polypropylene, Plastic, Off-White, 3/8 x 1/4 in ID Dimensions, Import

This 1/2 inch OD x 3/8 inch OD AquaLock(TM) mini reducing coupling works with plastic or soft copper tubing. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.

Attributes

Country Of OriginMexico
End StyleTube OD
Fitting/Connector TypeCoupling
Nominal Size1/2 x 3/8 in
Pressure Rating150 psi at 70 deg F/60 psi at 140 deg F
ColorOff-White
Dimensions3/8 x 1/4 in ID
Domestic/ImportImport
FinishPlastic
MaterialPolypropylene
Temperature Rating33 to 140 deg F
TypeQuick-Connect

Features

  • Zero leak connections
  • Works with plastic or soft copper tubing
  • Can be used for hot and cold water applications, including behind the wall applications
  • Connects in one step
  • Strong seal and hold
  • Reusable
  • No tools required for installation or removal
  • No special tools necessary
  • Rotates under pressure after installed for high flexibility during installation
