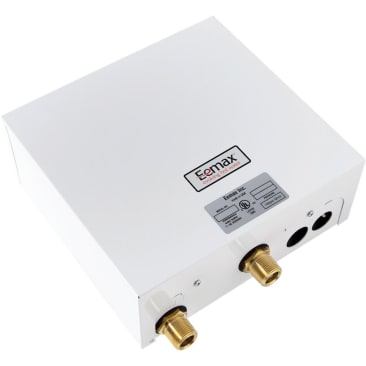

EEMAX EX144T2 EE 15KW 240V S2 EE/EF

MFR Part #: EX144T2 EE
SKU #: 1224860
Brand: Eemax™
UPC: 091654902086
Eemax™ EX144T2 EE Two™ Thermostatic Electric Tankless Water Heater With (1) Aerator, 240 VAC, 15000 W, 1 ph, 3/4 in MNPT Water, 64 A, Commercial/Residential/Dual: Commercial
1 Year Limited
Shopping Mall And Retail Outlets, Schools and all other Public Buildings, Tenant Spaces, Commercial Builds, Restaurants and Service Stations, Modular Buildings, Office and Trailers, Concession Stands and Food Service Locations and any Remote Sink that does not have Hot Water
AHRI Certified | ANSI/NSF 372 by WQA | Patent #4762980/4960976 | UL 499

Notice something off about this product?

Eemax™ Electric Tankless Water Heater With (1) Aerator, Thermostatic, Series: Two™ Series, 240 VAC, 64 A, 15000 W, 1 ph, 3 gpm, 3/4 in MNPT Water Connection, Nickel Chrome Heating Element, Energy Factor: 0.99, (2) 8 AWG Wire, Wall Mount, 2 gpm at 51 deg F Rise Recovery, 25 to 150 psi, 140 deg F, ASME Yes/No: No, White, 10.68 in W x 4.32 in D x 10.12 in H, Commercial Commercial/Residential/Dual, Domestic

Thermostatic electric tankless water heater ideal for residential and commercial applications up to 4 gpm.

Product Details

Eemax™ Electric Tankless Water Heater With (1) Aerator, Thermostatic, Series: Two™ Series, 240 VAC, 64 A, 15000 W, 1 ph, 3 gpm, 3/4 in MNPT Water Connection, Nickel Chrome Heating Element, Energy Factor: 0.99, (2) 8 AWG Wire, Wall Mount, 2 gpm at 51 deg F Rise Recovery, 25 to 150 psi, 140 deg F, ASME Yes/No: No, White, 10.68 in W x 4.32 in D x 10.12 in H, Commercial Commercial/Residential/Dual, Domestic

Thermostatic electric tankless water heater ideal for residential and commercial applications up to 4 gpm.

Attributes

Amperage Rating: 64 A
ASME Yes/No: No
Color: White
Commercial/Residential/Dual: Commercial
Country Of Origin: US
Dimensions: 10.68 in W x 4.32 in D x 10.12 in H
Domestic/Import: Domestic
Energy Factor: .99
Flow Rate: 3 gpm
Heating Capacity: 15 kW
Heating Element: Nickel Chrome
Mounting Type: Wall
Phase: 1 ph, 1
Power Rating: 15000 W
Pressure Rating: 25 to 150 psi
Recovery Rate: 2 gpm at 51 deg F Rise
Series: Two™
Temperature Rating: 140 deg F
Type: Thermostatic
Voltage Rating: 240 VAC
Water Connection: 3/4 in MNPT
Water Heater Type: Electric
Wire Size: (2) 8 AWG

Features

  • On demand hot water - No delay
  • Cut energy waste - Flow switch activates heater only when water is running, no standby heat loss
  • Endless hot water - No storage capacity to deplete
  • Reduces installation cost and material - No temperature and pressure valve required
  • Glass reinforced heating chambers in a unique flow path ensures optimum heat transfer and extended element life
  • Easy Installation - Simple NPT fittings that require no soldering, unit mounts directly to the wall with common hardware
  • Prevents legionella bacteria growth
  • Reduces calcification and sedimentation
  • Powder coated cover
  • Bottom plumbing configuration
  • 0.7 gpm turn-on
  • Replaceable cartridge bare wire element
  • EE - Emergency eyewash, meets ANSI tepid water requirements, maximum temperature 90 deg F

Resources

Instruction/Installation Manual
Specification Sheet
Warranty Information
