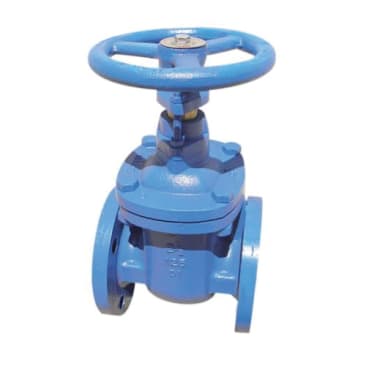

RED-WHITE 415-3 Image 1

RED-WHITE 005-40146 3 FLG CL125 CI GATE VLV NRS 415JA

MFR Part #: 415-3
SKU #: 0543602
Brand: RWV®
UPC: 620689415126
RWV® 415 Series 415-3 Gate Valve, 3 in, Flanged, Ductile Iron, 125 WSP, 200 WOG
MSS-SP-70

Notice something off about this product?

RWV® Gate Valve, 415 Series, 3 in Nominal, Flanged Connection, 125 WSP, 200 WOG, Gas, Oil, Water Media, Handwheel Actuator, 8.12 in Inlet to Outlet Length, 18.2 in Top to Inlet Center, Ductile Iron Body, Brass/Stainless Steel Stem, Bronze Trim, Graphite Packing, Ductile Iron Handle, Graphite Softgoods, Handwheel Operator, 495 Cv Flow Coefficient (Cv), 14 to 248 deg F, Material Standard: ANSI B16.5, 420, ASTM A536, B62 C833600, B16 C36000, 8.12 in L

Product Details

RWV® Gate Valve, 415 Series, 3 in Nominal, Flanged Connection, 125 WSP, 200 WOG, Gas, Oil, Water Media, Handwheel Actuator, 8.12 in Inlet to Outlet Length, 18.2 in Top to Inlet Center, Ductile Iron Body, Brass/Stainless Steel Stem, Bronze Trim, Graphite Packing, Ductile Iron Handle, Graphite Softgoods, Handwheel Operator, 495 Cv Flow Coefficient (Cv), 14 to 248 deg F, Material Standard: ANSI B16.5, 420, ASTM A536, B62 C833600, B16 C36000, 8.12 in L

Attributes

Body Material: Ductile Iron
Connection Type: Flanged
Nominal Size: 3 in
Pressure Rating: 125 WSP, 200 WOG
Actuator Type: Handwheel
Dimensions: 8.12 in L
Flow Coefficient (Cv): 495 Cv
Handle Material: Ductile Iron
Inlet to Outlet Length: 8.12 in
Material Standard: ANSI B16.5, 420, ASTM A536, B62 C833600, B16 C36000
Media: Gas, Oil, Water
Operator Type: Handwheel
Packing Material: Graphite
Series: 415 Series
Softgoods Material: Graphite
Stem Material: Brass/Stainless Steel
Temperature Rating: 14 to 248 deg F
Top to Inlet Center: 18.2 in
Trim Material: Bronze

Features

  • Non-rising stem design
  • IBBM, solid disc

Resources

Specification Sheet
