2 EZPRESS BALL VLV RED-WHITE 5020
MFR Part #: 5020 2
SKU #: 1040127
Brand: RWV®
UPC: 670779489209

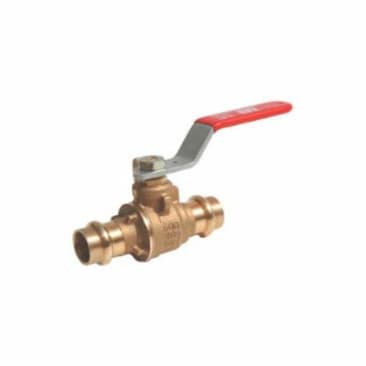

Please note this item is discontinued (order fulfillment will depend on stock availability): RWV® 5020 2 2-Piece Standard Ball Valve With Handle, 2 in Nominal, Dual Female EzPress End Style, Bronze Body, Full Port, PTFE Softgoods
MSS-SP-110 | ASTM-B30-C83600 Body | ASTM-B124-C37700 Ball/Stem and ASTM A36 Dacroment Handle
Notice something off about this product?
Product Details
Attributes
Features
Resources
RWV® Ball Valve, 2-Piece Standard, Series: 5020, 2 in Nominal, Dual Female EzPress, 600 lb WOG, 266 deg F, Full Port, 1.97 in Orifice, Chrome Plated Brass Ball, 6.97 in Inlet to Outlet Length, 3.58 in Top to Inlet Center, Bronze Body, Brass Stem and PTFE Seat Trim, PTFE Softgoods
Clearance Items:Clearance
Connection Type:Dual Female EzPress
Inlet to Outlet Length:6.97 in
Nominal Size:2 in
Pressure Rating:600 lb WOG
Ball Material:Chrome Plated Brass
Body Material:Bronze
Orifice Size:1.97 in
Port Type:Full
Series:5020
Softgoods Material:PTFE
Temperature Rating:266 deg F
Top to Inlet Center:3.58 in
Trim Material:Brass Stem and PTFE Seat
Type:2-Piece Standard
- Blow-out proof stem
- Adjustable packing nut
- PTFE packing ring/O-ring
Product Details
RWV® Ball Valve, 2-Piece Standard, Series: 5020, 2 in Nominal, Dual Female EzPress, 600 lb WOG, 266 deg F, Full Port, 1.97 in Orifice, Chrome Plated Brass Ball, 6.97 in Inlet to Outlet Length, 3.58 in Top to Inlet Center, Bronze Body, Brass Stem and PTFE Seat Trim, PTFE Softgoods
Attributes
Clearance Items: Clearance
Connection Type: Dual Female EzPress
Inlet to Outlet Length: 6.97 in
Nominal Size: 2 in
Pressure Rating: 600 lb WOG
Ball Material: Chrome Plated Brass
Body Material: Bronze
Orifice Size: 1.97 in
Port Type: Full
Series: 5020
Softgoods Material: PTFE
Temperature Rating: 266 deg F
Top to Inlet Center: 3.58 in
Trim Material: Brass Stem and PTFE Seat
Type: 2-Piece Standard
Features
- Blow-out proof stem
- Adjustable packing nut
- PTFE packing ring/O-ring
