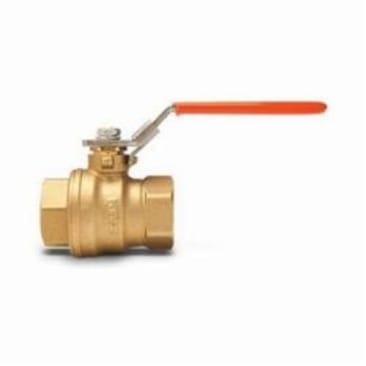

KITZ 59-112 Image 1

KITZ 054-00544 1-1/2 CXC F/PORT BALL VLV 59

MFR Part #: 59-112
SKU #: 1000350
Brand: KITZ
UPC: 747066004640
KITZ 59 1-1/2 59 Series 2-Piece Ball Valve, 1-1/2 in Nominal, Solder End Style, Brass Body, Full Port, FKM Softgoods
FM Approved | UL Listed

Notice something off about this product?

KITZ Ball Valve, 2-Piece, Series: 59 Series, 1-1/2 in Nominal, Solder, 600 psi, Full Port, Media: Gas/Oil/Water, 1.57 in Orifice, Lever Operated Actuator, Brass Ball, 2.35 in Inlet to Outlet Length, 2.52 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, FKM

KITZ Ball Valves are designed with extensive safety considerations. Vented-ball, blow-out- proof stem and prevention of lever misalignment are all standard features that contribute to safe handling and trouble free operation. Lever operation is standard on most of our ball valves; however; Oval Handles, Locking Ovals, Wing Handles, Extended Stems, or Insulated Stem Extensions can be provided.

Product Details

KITZ Ball Valve, 2-Piece, Series: 59 Series, 1-1/2 in Nominal, Solder, 600 psi, Full Port, Media: Gas/Oil/Water, 1.57 in Orifice, Lever Operated Actuator, Brass Ball, 2.35 in Inlet to Outlet Length, 2.52 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, FKM

KITZ Ball Valves are designed with extensive safety considerations. Vented-ball, blow-out- proof stem and prevention of lever misalignment are all standard features that contribute to safe handling and trouble free operation. Lever operation is standard on most of our ball valves; however; Oval Handles, Locking Ovals, Wing Handles, Extended Stems, or Insulated Stem Extensions can be provided.

Attributes

Ball Material: Brass
Body Material: Brass
Connection Type: Solder
Inlet to Outlet Length: 2.35 in
Media: Gas/Oil/Water
Nominal Size: 1-1/2 in
Operator Type: Lever Operated
Orifice Size: 1.57 in
Port Type: Full
Pressure Rating: 600 psi
Series: 59 Series
Softgoods Material: FKM
Top to Inlet Center: 2.52 in
Trim Material: Brass Stem and PTFE Seat
Type: 2-Piece

Features

  • 150 psi saturated steam to 366 deg F
  • Blow-out proof K-Metal stem
  • 2-Ports/Ways
  • Carbon steel handle nut, PBT thrust washer, forged brass (B283, C37700) body cap
  • Electroplated coating of zinc and plastic covering carbon steel handle
  • FKM O-ring
